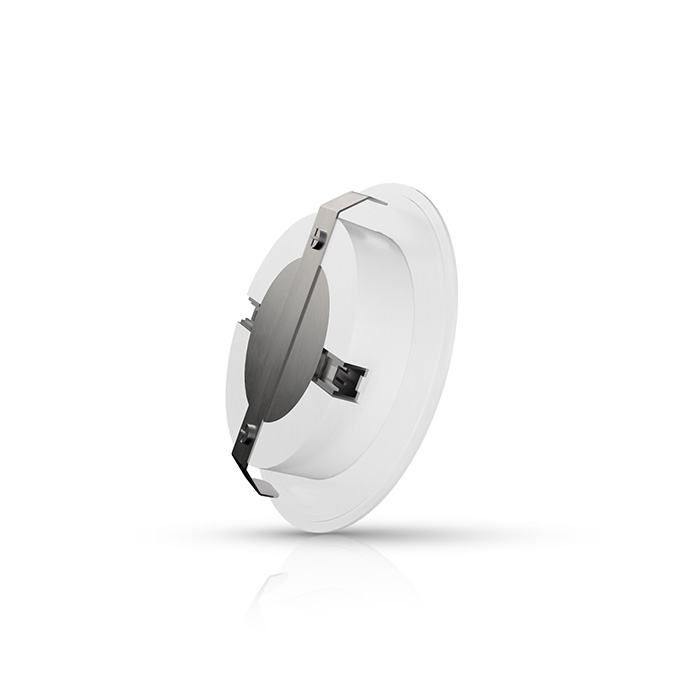

Cabiled led downlight 4W Ø65mm 2,700K white IP44
26,10
Description
Cabiled spotlights are perfect for use in cabinets and kitchens. They are only 15mm high and therefore easy to build in. For where this is not possible, surface-mounted rings are available. The spotlights and surface-mounted rings are available in white and brushed chrome.
The spotlights feature a warm white (2,700K) LED. Thanks to the Camita lens, a nice even light image is created. Is it too much or do you want to create a little more atmosphere? No problem, the spotlights are perfectly dimmable!
The Interlight Cabiled spotlights bring light to the most impossible places, let your kitchen, your dishes, your books shine!
NOTE:
This spotlight comes without a driver. Do you need only one Cabiled? Then choose this loose spot and the IL-CB13D driver which can be found in the accessories. Would you like to use more spots? Then choose the IL-CBSET basic set. This basic set contains 2 spots and a driver, which can be expanded with 2 separate spots to a total of 4 spots per driver.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Downlight |
| Suitable for surface mounting | Yes |
| GTIN | 08719214377595 |
| Suitable for flush mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| Suitable for ceiling mounting | Yes |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | No |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| With light sensor | No |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | White |
| Material cover | Plastic transparent |
| Voltage type | AC |
| Nom. voltage | 22 V |
| Ballast | LED control current-controlled |
| Driver included | No |
| Dimmable | Yes |
| Interchangeable ballasts | Yes |
| Dimmable phase cut | Yes |
| Dimmable phase cut | Yes |
| Reflector | Other |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | 21-40° – Medium radiant |
| Light outlet | Direct |
| Energy efficiency class | A+ |
| Energy efficiency class of the built-in lamp | A+ |
| Nom. life L80/B10 at 25 °C | 50000 h |
| Degree of protection (IP) | IP44 |
| Degree of protection (NEMA). | 4 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 4 W |
| Max system power | 4 W |
| Luminous flux | 260 lm |
| Effective luminous flux according to IEC 62722-2-1 | |
| Specific luminous flux lamp | 65 lm/W |
| Light color | White |
| Color temperature | 2700 K |
| Color rendering index | 90-100 |
| Power factor | 0.85 |
| Installation diameter | |
| Length | 65 mm |
| Width | 65 mm |
| Height/depth | 15 mm |
| Outer diameter | 65 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Plug clamp |
| Specific luminous flux luminaire | 65 lm/W |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
