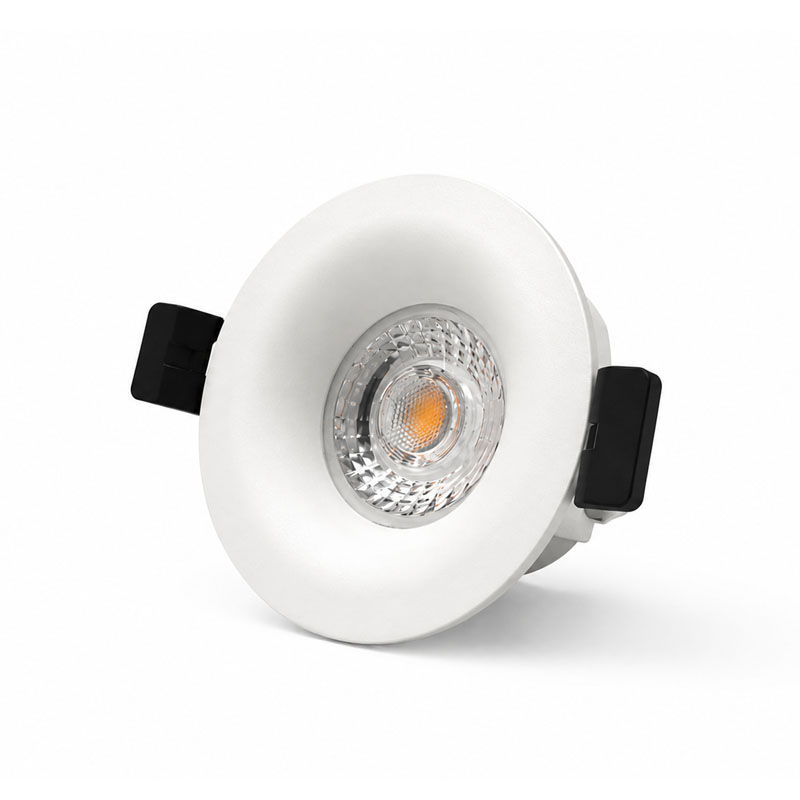

Camini led spotlight 8W Ø82mm 2,700K white dimmable incl. driver
39,10
Description

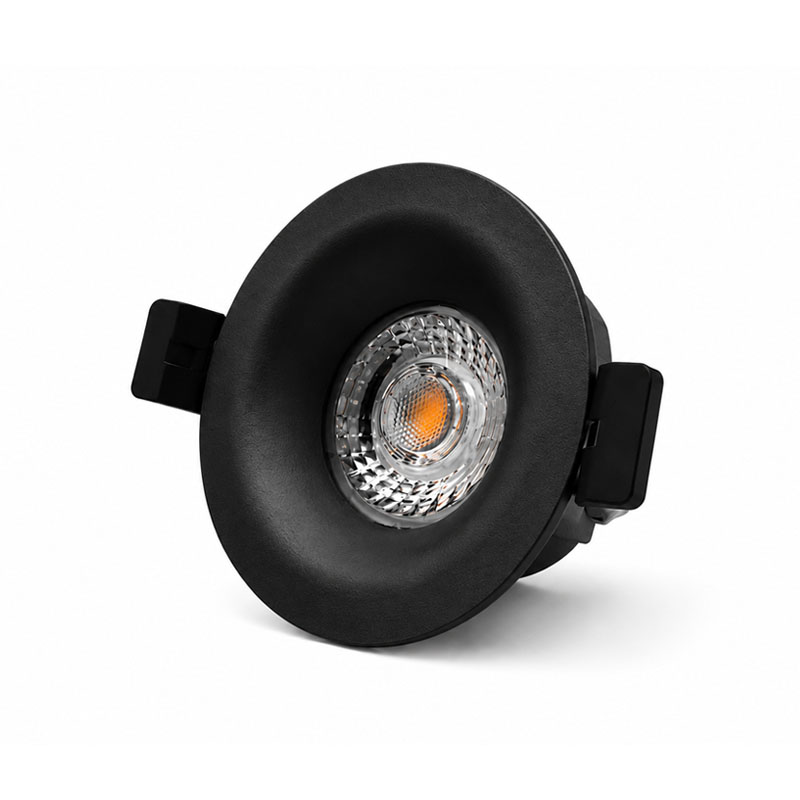

Series of warm white 8W LED spotlights in tough matte white and matte black finishes. Choose from a fixed or
tiltable model. The fixed series has an LED that is deeper in the fixture, so the light does not
glare. The tiltable spotlights are ideal for targeted illumination of walls or objects. They are
available in round and square versions. The Caminis are IP44 rated, meaning
they can also be used under canopies, or in the bathroom (zone 2).
Supplied with driver.
The minimum installation depth must be 80 mm for the purpose of the driver.
If you want to use a DALI, 1-10V or Thinq driver with these spotlights, set the driver to a maximum of 180mA
Color: RAL 9003
Specifications
| Brand | Interlight |
|---|---|
| Product type | Downlight |
| Suitable for surface mounting | No |
| GTIN | 08719214376031 |
| Suitable for flush mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| With presence detector | No |
| Suitable for ceiling mounting | Yes |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | No |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| Nom. voltage | 230 V |
| With light sensor | No |
| Nom. current | 180 mA |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | White |
| Material cover | Plastic transparent |
| Surface brushed | No |
| Voltage type | AC |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Dimming dependent on driver | Yes |
| Dimmable | Yes |
| Interchangeable ballasts | Yes |
| Dimmable phase cut | Yes |
| Dimmable phase cut | Yes |
| Reflector | High Gloss |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Reflector color | Silver |
| Beam angle | 21-40° – Medium radiant |
| Light outlet | Direct |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | F |
| Totale harmonische vervorming (THD) | 14 % |
| Nom. life L80/B10 at 25 °C | 50000 h |
| Constant luminous flux control | Yes |
| Degree of protection (IP) | IP44 |
| Protection degree back (IP). | IP20 |
| Degree of protection front (IP) | IP44 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 8 W |
| Max system power | 8 W |
| Emergency power supply system | No |
| Luminous flux | 640 lm |
| Specific luminous flux lamp | 80 lm/W |
| Light color | White |
| Color temperature | 2700 K |
| Brightness | 1691 cd |
| Light color adjustable | No |
| Color rendering index | 80-89 |
| Effective luminous flux according to IEC 62722-2-1 | 0 – 750 lm |
| Luminous flux adjustable | Stepless |
| Specific luminous flux luminaire | 0 – 93.75 lm/W |
| Brightness | 1691 cd |
| Power factor | 0.9 |
| Installation diameter | 64 mm |
| Flickering value Pst LM | 0.75 |
| Beam angle adjustable | No |
| Strobe effect value SVM | 0.25 |
| Length | 82 mm |
| Installation height/depth | 50 mm |
| Width | 82 mm |
| Height/depth | 40 mm |
| Outer diameter | 82 mm |
| Installation diameter | 64 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Emergency power supply integrated | No |
| Connectable conductor cross section | 0.75 – 2.25 mm² |
| Connection method | Plug clamp |
| Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24 | No |
| Max. number of fixtures per line protection switch B16 | 200 |
| Max. number of fixtures per line protection switch C16 | 213 |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Photobiological safety in accordance with EN 62471 | RG0 |
| Cover fixture with thermal insulation material possible | No |
| Color consistency (McAdam ellipse) | SDCM1 |
| UGR | 22 |
