Description

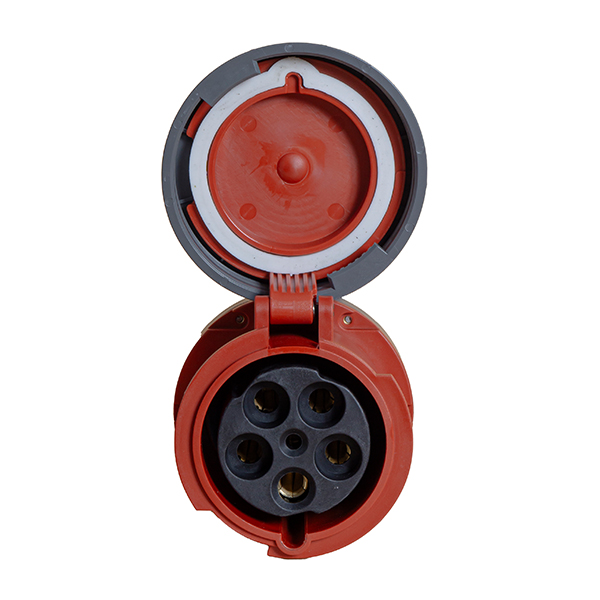

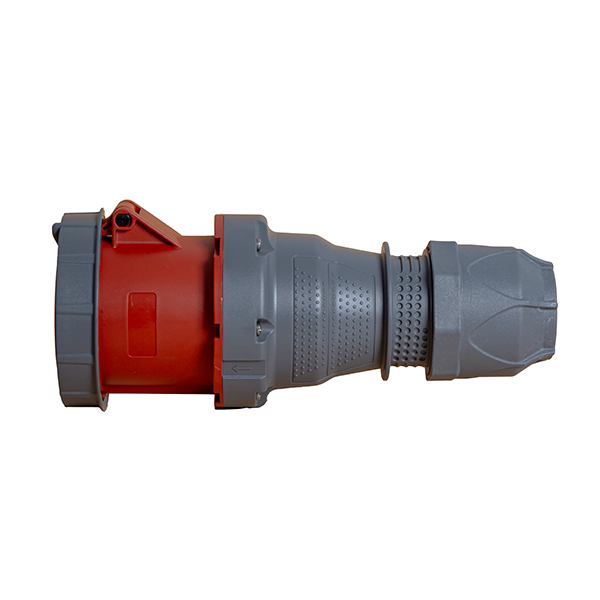

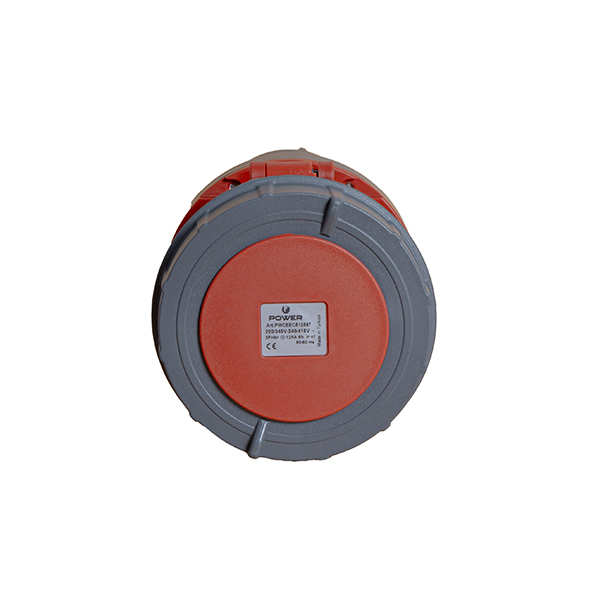

Power CEE mating plug 5-pole 125 amp. Waterproof IP67. The contacts are equipped with lamella springs:
– Easy insertion and removal
– Excellent clamping force
– Reduction of electrical resistance
– Self-cleaning in tough conditions
All products in the Power CEE range are VDE certified and thus comply with the European standard IEC 60309-1:2021, which guarantees a safe connection. For the permitted conductor cross-sections, please refer to the appendix Power CEE – Cable specifications.
All products in the Power CEE series are lead-free and thus comply with the European RoHS Directive 2011/65/EU & 2015/863/EU.
Specifications
| Brand | Power |
|---|---|
| Product type | CEE socket plug |
| IEC current | 125 A |
| GTIN | 08720195276975 |
| Number of poles | 5 |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Hours | 6 h |
| Feature color | Red |
| Degree of protection (IP) | IP67 |
| Connection technology | Screw Clamp |
| Insertion direction | Straight |
| Cable Entry | Screw gland |
| Material | Plastic |
| Contact Equipment | CuZn |
| Surface treatment contacts | Galvanized |
