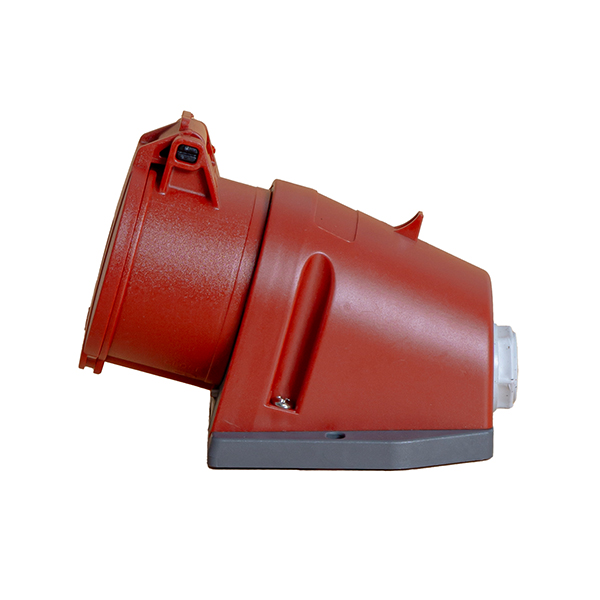

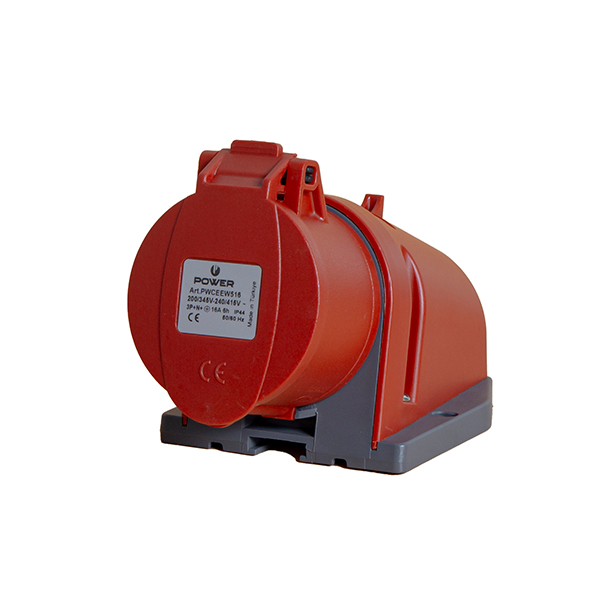

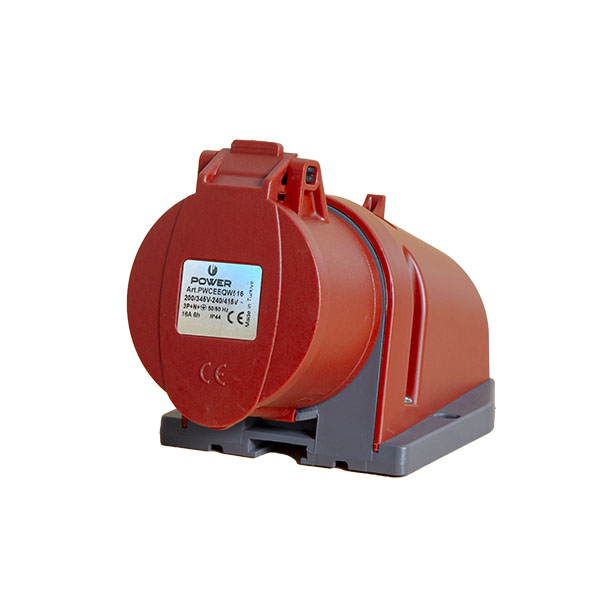

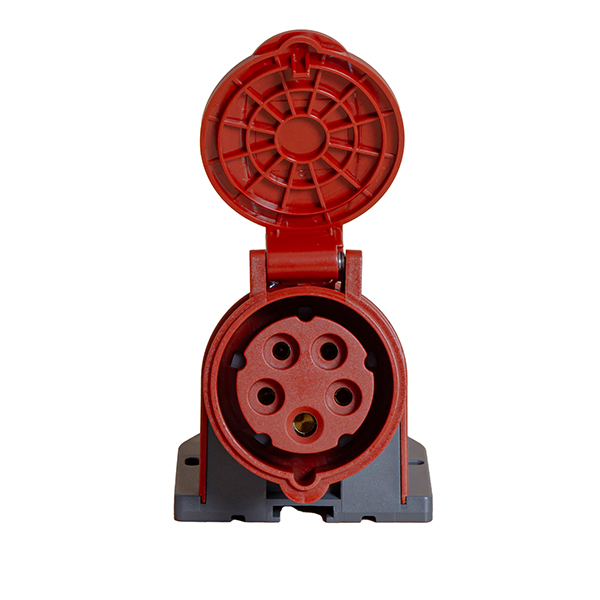

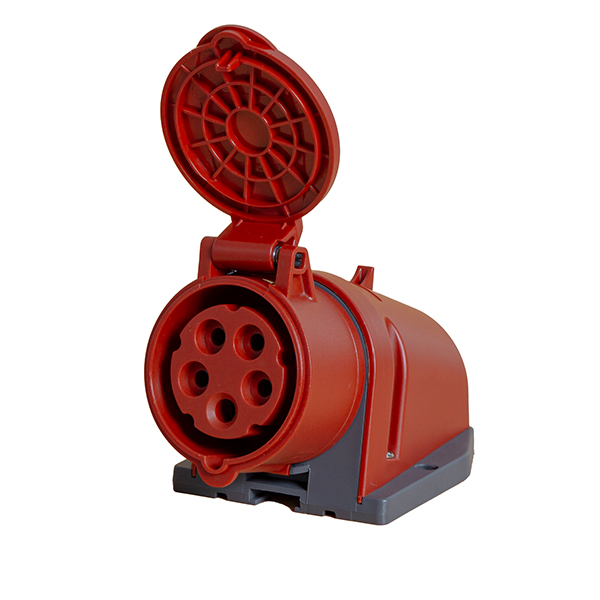

CEE quick connect surface-mounted socket outlet 5-pole 16A IP44 red
13,65
Description
The 5x16A CEE surface mount socket combines safety, durability and installation speed in one reliable solution. With an output of 16A, suitable for 380-415V (50-60 Hz) and designed in 5-pole (3P + N + E), this model is ideal for professional industrial applications.

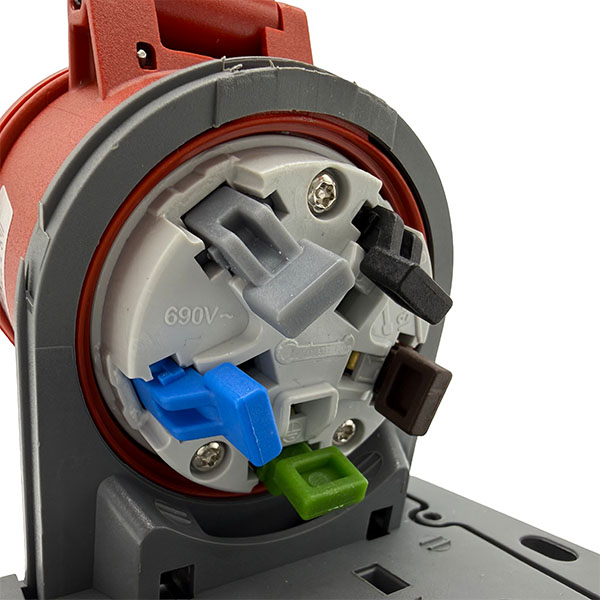

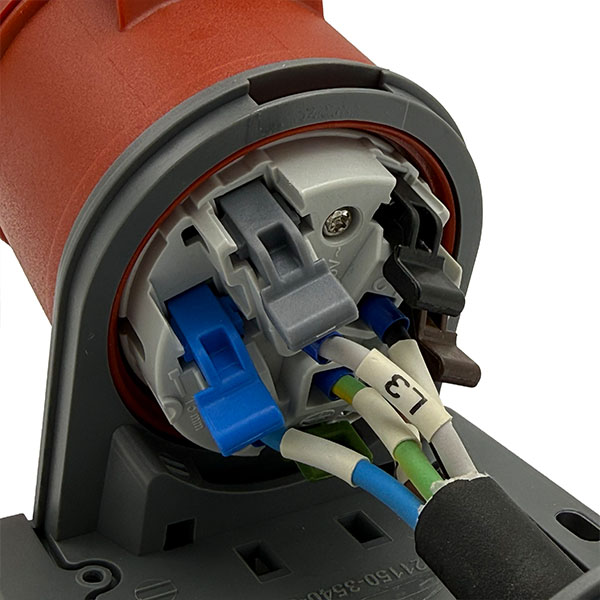

Thanks to the clever Quick Connection system, you work faster, more efficiently and with less chance of error than with traditional screw connections.
The benefits of Quick Connection
- Faster installation: less assembly time per connection
- Reliable and constant contact pressure: optimum electrical conduction
- Less chance of installation errors: simple and clear connection process
- Lower assembly costs: working faster means immediate cost savings
- Easy to maintain: quick and easy to disconnect
The rugged PA6 housing, high-quality brass contacts (CuZn) and IP44 protection ensure long-lasting and safe performance at temperatures from -25°C to +80°C.
The reliable choice for installers who want to combine efficiency and quality.
Specifications
| Brand | Power |
|---|---|
| Product type | CEE wall outlet |
| Mounting method | Construction |
| GTIN | 08720874246640 |
| IEC current | 16 A |
| Number of poles | 5 |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Hours | 6 h |
| Feature color | Red |
| Housing color | Other |
| Degree of protection (IP) | IP44 |
| Connection technology | Screwless clamp |
| Cable Entry | Screw gland |
| Material | Plastic |
| Contact Equipment | CuZn |
| Surface treatment contacts | Galvanized |
| Attachment method | Exterior mount |
