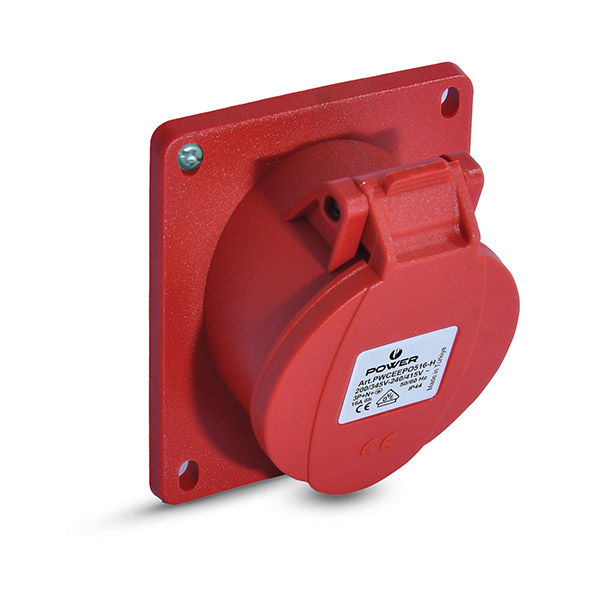

CEE socket outlet angled 5-pole 16A IP44

PWCEEPO516-H

9,45

In stock
to see exact stock

Specifications

Brand

Power

Product type

CEE socket

IEC current

16 A

GTIN

08720195279402

Voltage according to EN 60309-2

380-415 V (50+60 Hz) red

Nom. voltage

380 – 415 V

Nom. (measurement) frequency

50 – 60 Hz

Number of poles

5

Hours

6 h

Feature color

Red

Degree of protection (IP)

IP44

Connection technology

Screw Clamp

Insertion direction

Oblique (angled)

Material

Plastic

Contact Equipment

CuZn

Military version

No

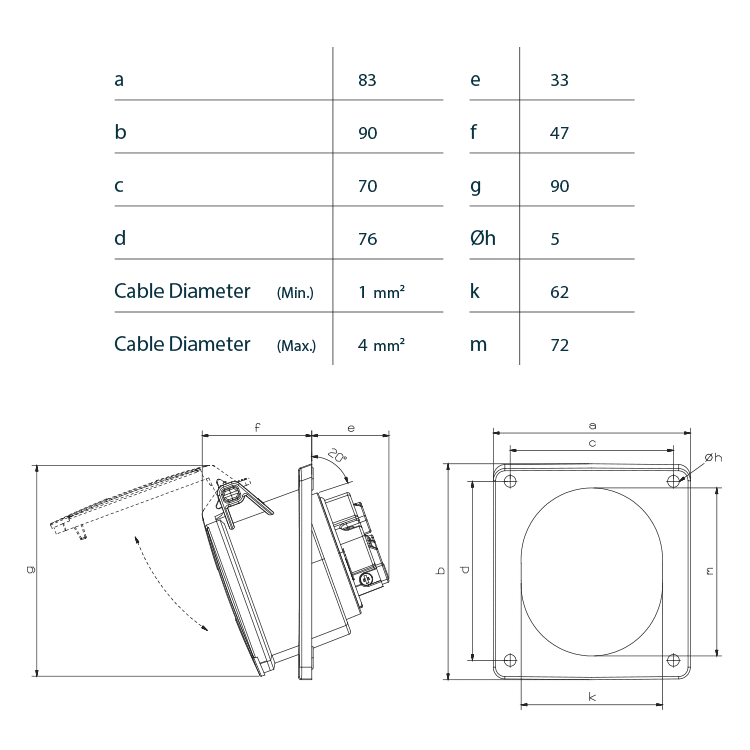

Flange size vertical

90 mm

Drill hole spacing vertical

76 mm

Flange size horizontal

83 mm

Drill hole spacing horizontally

70 mm
