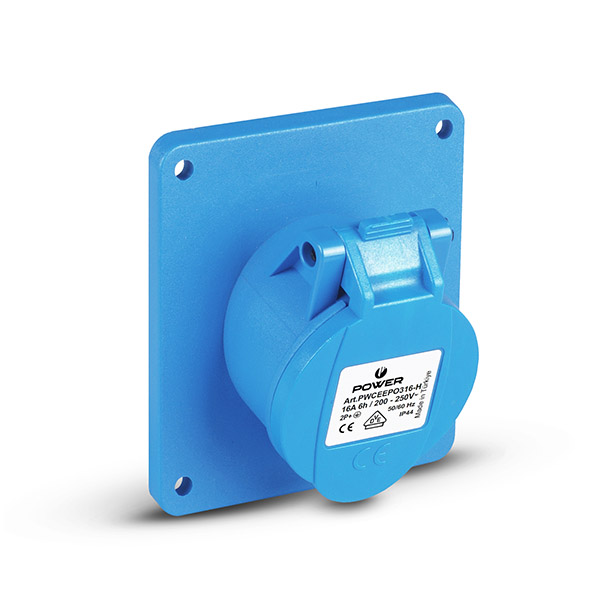

CEE socket outlet oblique 3-pole 16A IP44

PWCEEPO316-H

7,15

In stock
to see exact stock

Specifications

Brand

Power

Product type

CEE socket

IEC current

16 A

GTIN

08720195279389

Voltage according to EN 60309-2

200-250 V (50+60 Hz) blue

Nom. voltage

200 – 250 V

Nom. (measurement) frequency

50 – 60 Hz

Number of poles

3

Hours

6 h

Feature color

Blue

Degree of protection (IP)

IP44

Connection technology

Screw Clamp

Insertion direction

Oblique (angled)

Material

Plastic

Contact Equipment

CuZn

Military version

No

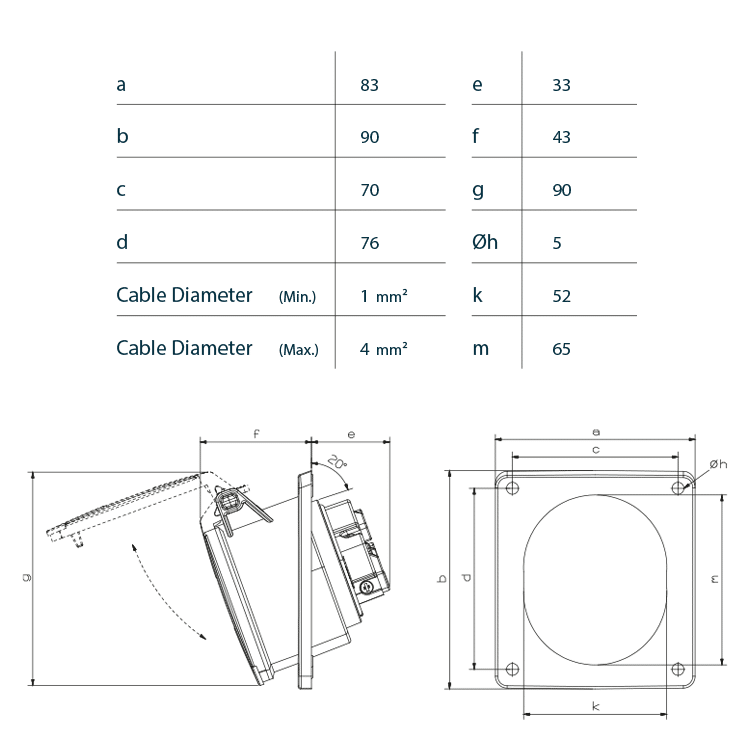

Flange size vertical

90 mm

Drill hole spacing vertical

76 mm

Flange size horizontal

83 mm

Drill hole spacing horizontally

70 mm
