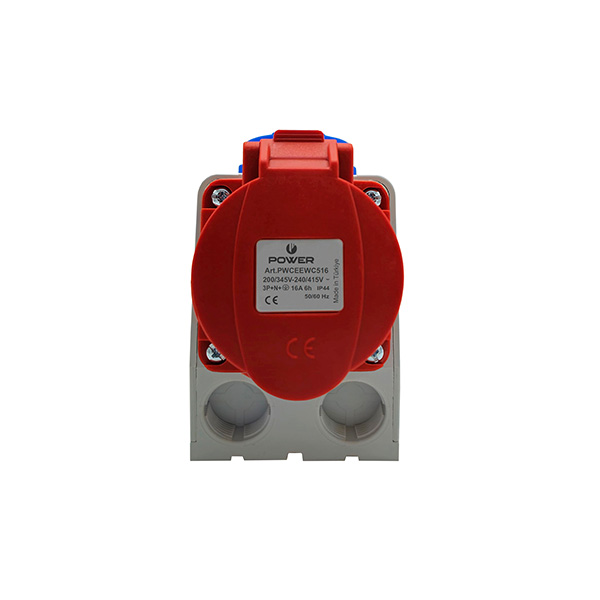

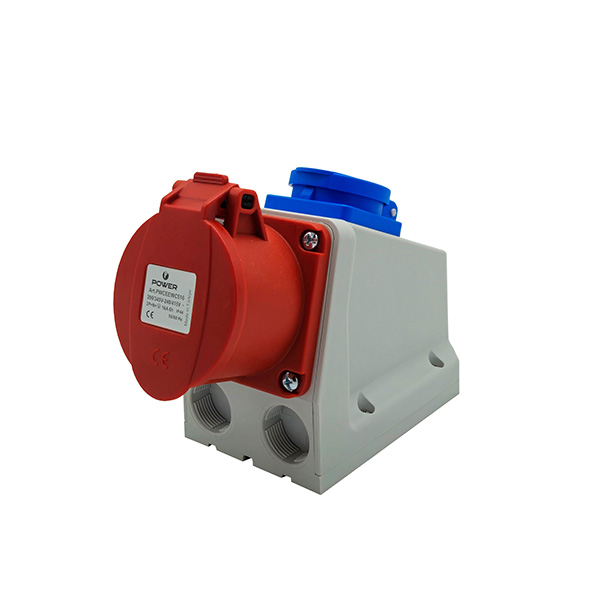

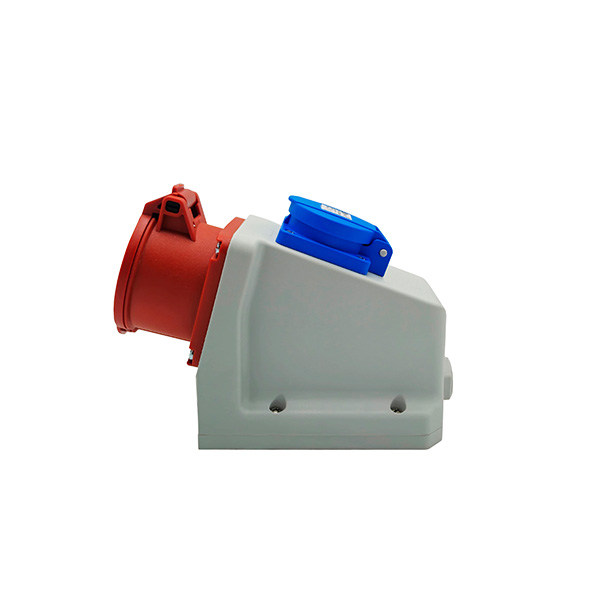

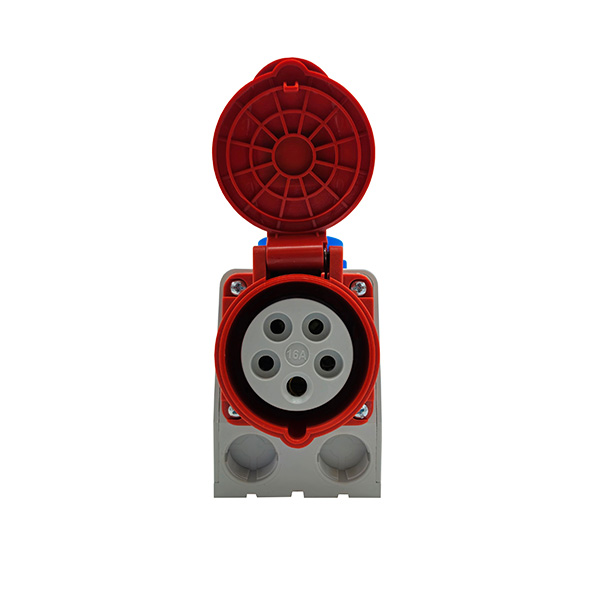

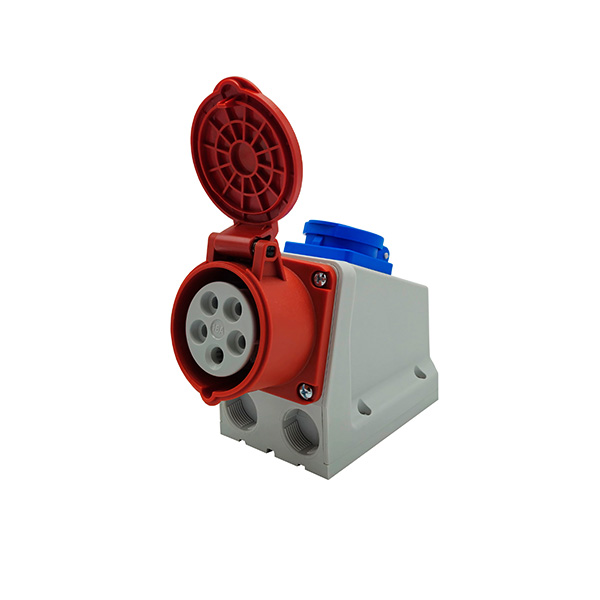

CEE surface-mounted wall outlet combination 5-pole 16A IP44
32,55
Description
Power CEE socket outlet surface-mounted combination 5-pole 16 amp. Splashproof IP44. Equipped with one socket outlet 5-pole 16A and one socket outlet 3-pole 16A. This article has 3 connections for cable gland M25 (two at the front, one at the back) and is supplied with 1 input grommet M25. All products in the Power CEE range are VDE certified and thus comply with the European standard IEC 60309-1:2021, which guarantees a safe connection. For the permitted conductor cross-sections, please refer to the appendix Power CEE – Cable specifications.
All products in the Power CEE series are lead-free and thus comply with the European RoHS Directive 2011/65/EU & 2015/863/EU.
Specifications
| Brand | Power |
|---|---|
| Product type | CEE wall outlet |
| Model | Construction |
| GTIN | 08720195278191 |
| IEC current | 16 A |
| Number of poles | 5 |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Hours | 6 h |
| Housing color | Gray |
| Degree of protection (IP) | IP44 |
| Connection technology | Screw Clamp |
| Cable Entry | Screw gland |
| Material | Plastic |
| Contact Equipment | CuZn |
| Attachment method | Exterior mount |
