Ceiling light led 22W Ø410mm 3,000/4,000/5,700K IP64
68,15
Description

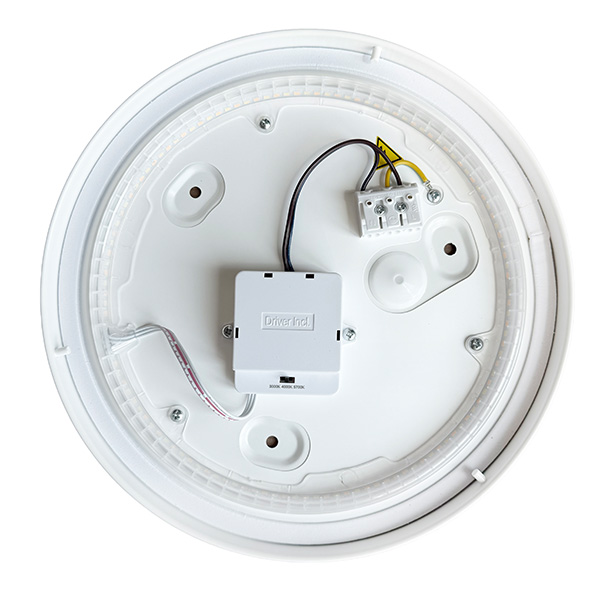

This new series of CLS ceiling lights represents the latest generation of our range, succeeding our previous series of ceiling lights. In particular, a striking feature is the new design of the shade. While the previous shade had a more spherical appearance, the new shade is sleeker and more contemporary. In addition, this ceiling fixture offers the ability to adjust the light color as desired using the dipswitch built into the fixture. You have a choice of 3,000K, 4,000K and 5,700K, making this ceiling light ideal for applications in retail, hotels, galleries and stairwells. Thanks to its IP64 rating, this fixture is even suitable for use in bathrooms!
Our ceiling lights are made of polystyrene with excellent light transmission. This material preserves the brightness of colors and the shade provides a soft and uniform light pattern. The design of the mounting module also ensures efficient heat dissipation, allowing the built-in LEDs to burn long and stable.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Ceiling light |
| Suitable for wall mounting | Yes |
| GTIN | 08720195277064 |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for pendulum suspension | No |
| Suitable for flush mounting | No |
| With mounting material | Yes |
| Suitable for clamp mounting | No |
| Suitable for light line configuration | No |
| With light source | Yes |
| Suitable for monitor workplace according to EN 12464-1 | No |
| Suitable for number of light sources | 1 |
| Lamp type | LED not interchangeable |
| Lampholder | Other |
| Housing material | Plastic |
| Surface protection housing | Plasticized |
| Housing color | White |
| Voltage type | AC |
| Material cover | Plastic opal |
| Nom. voltage | 230 V |
| Grid version | Other |
| Driver included | Yes |
| Ballast | LED control current-controlled |
| Interchangeable ballasts | No |
| Dimmable | No |
| Dimming dependent on driver | No |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Light outlet | Direct |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | E |
| Part of a holder according to 2019/2020/EU | No |
| Nom. life L70/B50 at 25 °C | 95000 h |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 89 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 84 % |
| Lumen maintenance at average lifetime of 75,000 hours at 25 °C environment (tq) | 76 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 5 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Nom. life L80/B10 at 25 °C | 50000 h |
| Failure at average service life of 75,000 hours at 25 °C environment (tq) | 15 % |
| Protection degree back (IP). | IP44 |
| Degree of protection front (IP) | IP64 |
| Degree of protection (IP) | IP64 |
| Maximum number of fixtures per circuit breaker C10 (MCB) | 59 |
| Max. number of fixtures per line protection switch B16 | 94 |
| Max. number of fixtures per line protection switch C16 | 94 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | I |
| Nom. ambient temperature according to IEC62722-2-1 | -20 – 40 °C |
| Suitable for emergency lighting | No |
| With presence detector | No |
| With motion sensor | No |
| Effective luminous flux according to IEC 62722-2-1 | 1980 lm |
| With light sensor | No |
| Cover fixture with thermal insulation material possible | No |
| With air slots | No |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Suitable for lamp power | 22 W |
| Specific luminous flux luminaire | 80 – 90 lm/W |
| Max system power | 22 W |
| Effective luminous flux according to IEC 62722-2-1 | 1760 – 1980 lm |
| Light color | White |
| Color temperature | 3000 – 5700 K |
| Color rendering index | 70-79 |
| Power factor | 0.9 |

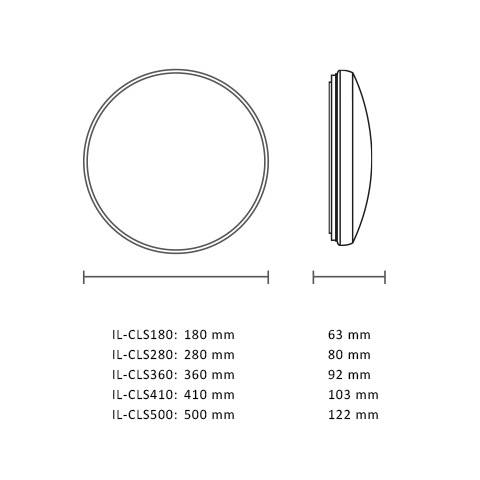

| Height/depth | 102.8 mm |
| Outer diameter | 410 mm |
| Type of wiring | End |
| Number of poles | 3 |
| Totale harmonische vervorming (THD) | 29 % |
| Connection method | Plug clamp |
| UGR | 22 |
| Light color adjustable | Stands |
| Luminous flux adjustable | Stands |
| Beam angle adjustable | No |
