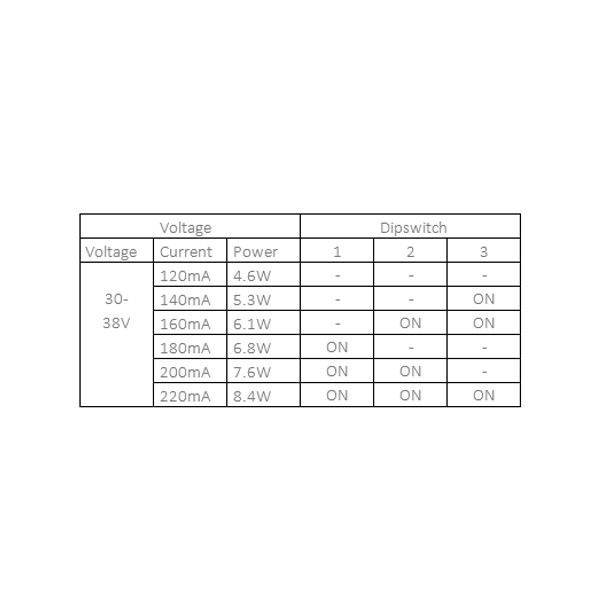

Driver led dip switch 120 to 220mA dimmable
25,70
Description
The IL-DC9D driver is designed for phase-cut dimming. These LED drivers provide constant current and are flicker-free, and suitable for 4.6W-13.3W LED modules and fixtures.
It is a SELV independent ballast, with wide operating windows for easy installation, this allows for quick installation and fewer supplies.
– Push-fit terminals and looping design
– Flicker-free and smooth dimming
– Large wiring space, transparent end cap
– Quick and easy wiring with push-fit terminals and conduit wiring
– Protection rating IP20

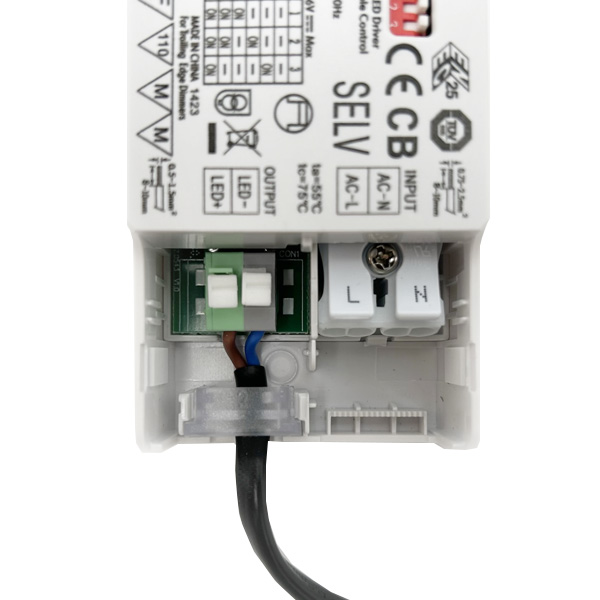

– 2 separate strain relief sections for input and output cables with very robust terminals
Specifications
| Brand | Interlight |
|---|---|
| Product type | Dimmable |
| Model | Dynamic |
| GTIN | 08717438667188 |
| Suitable for outdoor use | No |
| Dimmable | Yes |
| Dimmable phase cut | Yes |
| Dimmable phase cut | Yes |
| Housing | Plastic housing |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| Output voltage | 42 V |
| Output Current | 180 mA |
| Suitable for direct voltage (primary side) | No |
| Output power | 4 – 9 W |
| Input voltage | 220 – 240 V |
| Frequency input voltage | 47 – 53 Hz |
| Overload protection | Yes |
| Emergency power supply system | No |
| Overtemperature protection | Yes |
| Ambient temperature | -20 – 55 °C |
| Short circuit protection | Yes |
| Max. number of fixtures per line protection switch B16 | 200 |
| Max. number of fixtures per line protection switch C16 | 213 |
| Degree of protection (IP) | IP20 |
| Protection class according to IEC 61140 | II |
| Operating device life | 50000 h |

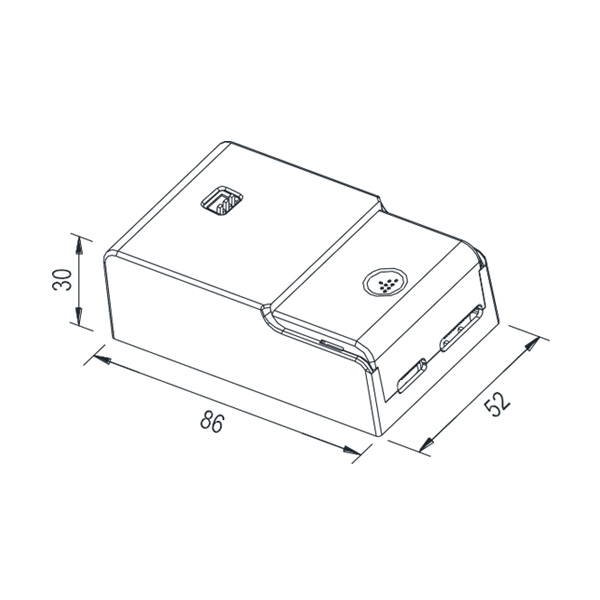

| Length | 86 mm |
| Width | 52 mm |
| Height | 30 mm |
