Driver led dip switch 160 to 350mA 1-10V dimmable
36,25
Description
The IL-X2D drivers provide a constant current and offer an output voltage ranging between 14V and 42V. The fanless driver is designed to operate at ambient temperatures from -20°C to 45°C under free air convection. Interlight combines 1-10V, 10V and wattage-selectable functions. This makes the drivers compatible with many 1-10V dimmers.

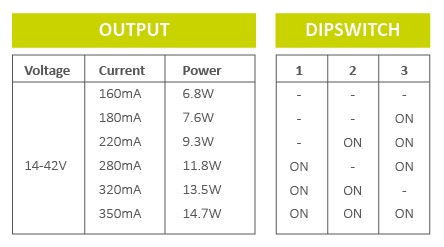

Thanks to the 3 dip switches, you can easily switch between various input currents. For the IL-X2D15-1-10, this current varies between 160mA and 350mA. With the IL-X2D40-1-10, it varies between 400mA and 1100mA. The drivers are ENEC certified. The drivers are 1-10V dimmable and dim from 5% to a maximum of 100%, this to ensure that when using a push or turn dimmer the light will always stay on. On our website you will find an overview of fixtures and dimmers with which these drivers have been tested.

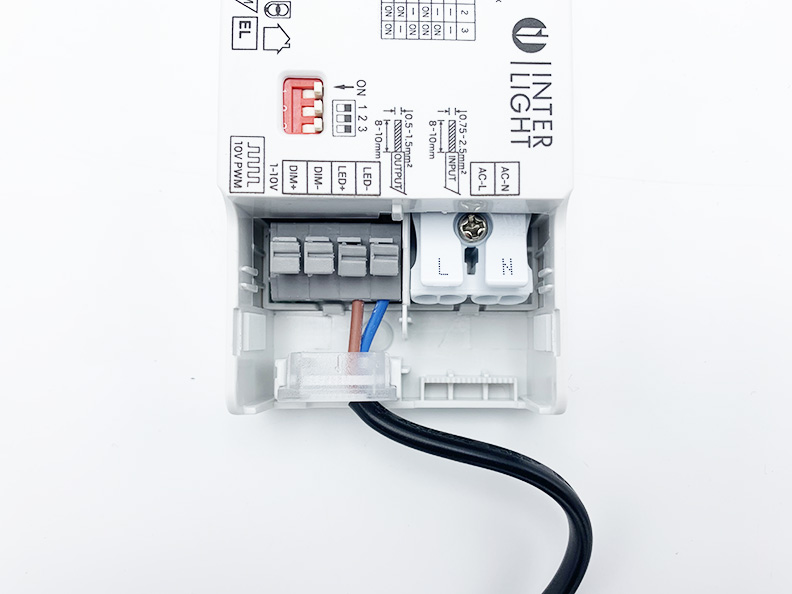

– Easy and quick connection with push-fit terminals and clip-on end cap for strain relief
– Flicker Free (<3% flicker percentage)
– Lifespan of >50,000 hours at 25°C
– No need to open the transparent end cap for inspection of loose wiring.
– Dimming range 1-10V: 5%-100%
Specifications
| Brand | Interlight |
|---|---|
| Product type | 1-10V dimmable |
| Model | Dynamic |
| GTIN | 08719214377274 |
| Suitable for outdoor use | No |
| Dimmable | Yes |
| Dimmable 1-10 V | Yes |
| Housing | Plastic housing |
| Suitable for constant current | Yes |
| Suitable for constant voltage | Yes |
| Output voltage | 14 – 42 V |
| Output Current | 160 – 350 mA |
| Suitable for direct voltage (primary side) | Yes |
| Output power | 5 – 15 W |
| Degree of protection (IP) | IP20 |
| Protection class according to IEC 61140 | II |

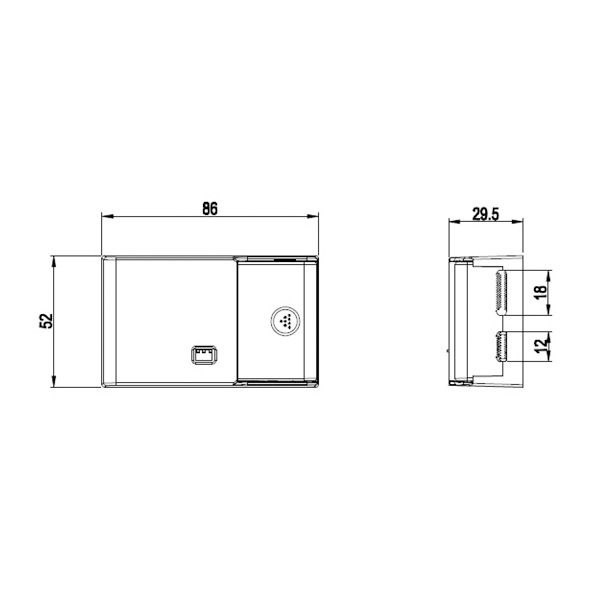

| Length | 86 mm |
| Width | 52 mm |
| Height | 30 mm |
