Easy Connect IP65 surface mounted 50W 1,500mm incl. driver
83,50
Description
Interlight’s latest series of waterproof fixtures, the Easy Connect, feature a unique and specially designed connection system by us. The Interlight Easy Connect waterproof fixture can be installed without opening the prismatic shade. This can be done in three easy steps:

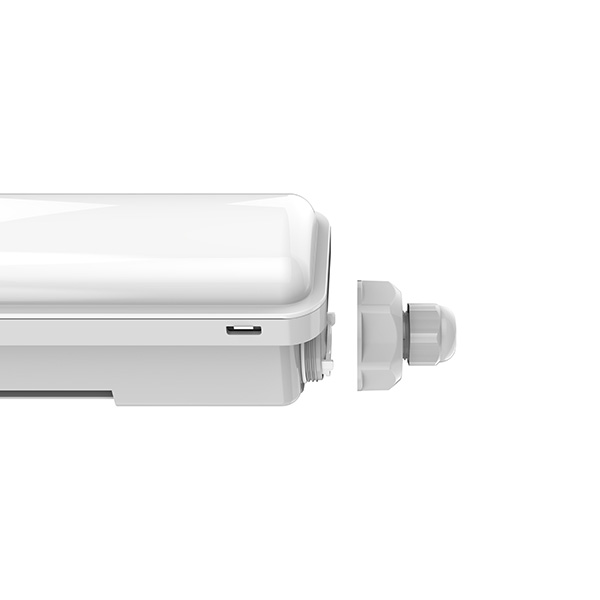

1. Unscrew the end stop with cable swivel.

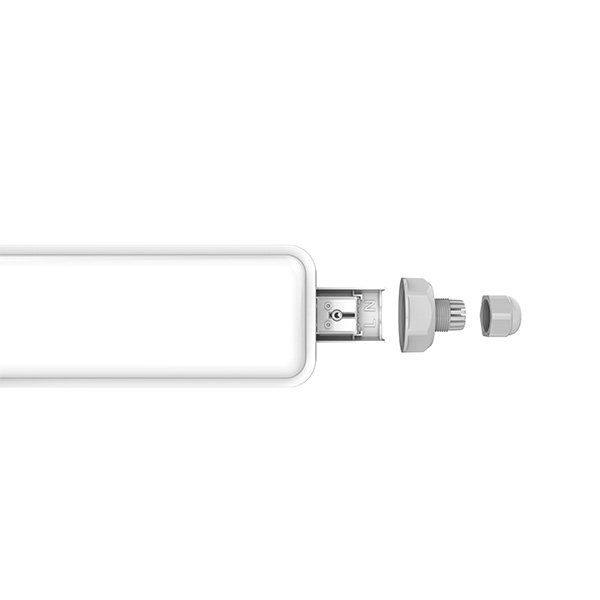

2. Pull out the Easy Connector, feed the cable through the end plug and cable gland and insert it into the Easy Connector.
3. Push the Easy Connector back in and tighten the end cap with cable gland.
The fixture comes standard with conduit wiring for easy interconnection of multiple fixtures. Depending on the fixture, up to 72 fixtures can be linked together. The fixture is super efficient, IP65 water and dust proof and IK08 impact resistant.
Accessories are included as standard: two mounting brackets with screws and plugs and an additional end plug with cable gland, to be used when the fixture is interconnected.
In addition to great ease of installation, the fixtures are also economical, all versions are at least 115 lumens per watt. The Easy Connect fixtures feature a flicker-free driver and are available in sizes 60, 120 and 150 cm. Available in 4,000K.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Waterproof |
| Suitable for wall mounting | Yes |
| GTIN | 08720195277491 |
| Suitable for pendulum suspension | Yes |
| Suitable for flush mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for monitor workplace according to EN 12464-1 | No |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Plastic |
| Surface protection housing | Plasticized |
| Housing color | Gray |
| Material cover | Plastic opal |
| Grid version | No |
| Voltage type | AC |
| Nom. voltage | 230 V |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Dimmable | No |
| Not dimmable | Yes |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Color consistency (McAdam ellipse) | SDCM5 |
| Light outlet | Direct |
| Degree of protection (IP) | IP65 |
| Impact resistance | IK08 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24 | No |
| Nom. ambient temperature according to IEC62722-2-1 | -25 – 35 °C |
| Suitable for emergency lighting | No |
| With motion sensor | No |
| Effective luminous flux according to IEC 62722-2-1 | 6000 lm |
| With light sensor | No |
| Cover fixture with thermal insulation material possible | No |
| With air slots | No |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Suitable for lamp power | 50 W |
| Max system power | 50 W |
| Light color | White |
| Color temperature | 4000 K |
| Color rendering index | 80-89 |
| Power factor | 0.9 |

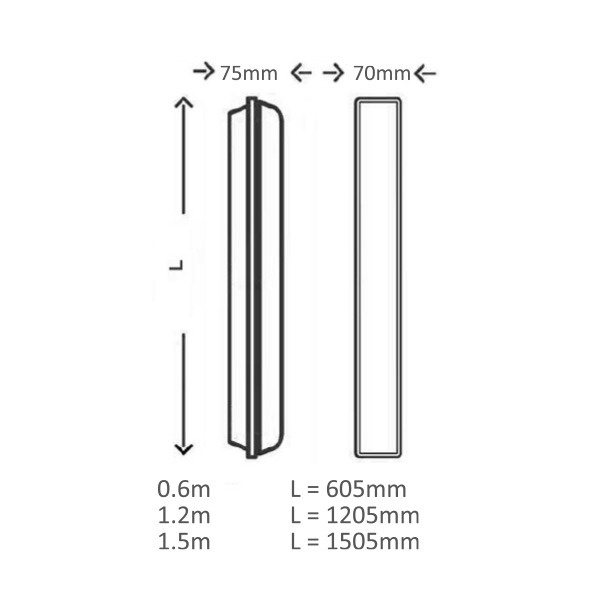

| Width | 70 mm |
| Height/depth | 81 mm |
| Length | 1500 mm |
| Type of wiring | Incl. through-wiring |
| Light color adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation via App | No |
