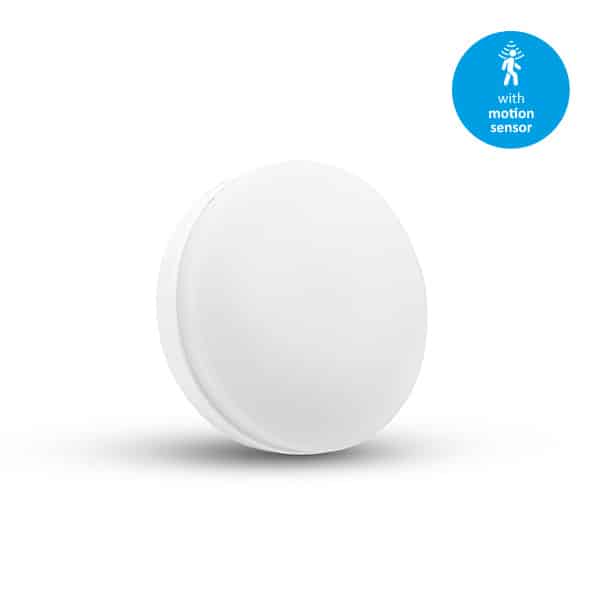

Edge Plus led ceiling light 5/8/10W Ø267mm 3,000/3,500/4,000K white with sensor

IL-EDPL267WS
  • With sensor
Housing color: White

83,90

In stock
to see exact stock

Description

Interlight’s Edge Plus fixtures combine sleek and modern design with exceptionally high energy efficiency, making them an ideal lighting solution for both commercial and industrial applications. Thanks to the robust housing made of impact-resistant and flame-extinguishing polycarbonate, these fixtures offer optimal protection against environmental influences, such as dust and impacts, making them perfect for demanding (working) environments.

One of the main advantages of the Edge Plus series is the integrated flicker-free driver, which provides stable, comfortable lighting without flickering. This contributes to improved visual comfort and reduces eye fatigue, which is especially important in workspaces where prolonged illumination is required.

To provide maximum flexibility, the fixtures are equipped with adjustable wattage and light color. This allows you to completely tailor the lighting to your specific needs and preferences. The available light colors are 3,000K, 3,500K and 4,000K.

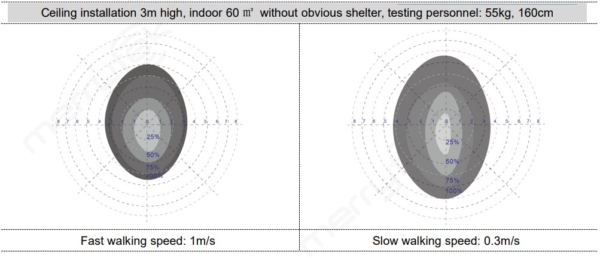

By default, the sensor is set as follows:
Sensitivity: 100%
Burn time: 5S
Daylight sensor: Disabled
Standby Period: 0S
Standby dimming: 25%

On the sensor, the following options can be set:
Sensitivity: 100%, 75%, 50%, 25%
Burn time: 5s, 90s, 3min, 10min
Daylight sensor: 5Lux-15Lux, 15Lux-50Lux, 50Lux-100Lux, disabled
Standby period: 0s, 30s, 10min, infinity

The sensor can also be used as a twilight switch in standby mode. This feature works only when the daylight sensor is set to a specific lux value. As soon as the measured light intensity falls below the set lux value, the fixture automatically switches to standby mode. When motion is subsequently detected, the fixture switches to 100% light output. After the set runtime has elapsed, the fixture automatically dims back to standby mode. It is not possible to set the runtime at 100% light output to an indefinite duration.

The dim level in standby mode cannot be changed, it defaults to 25%.

The Edge Plus models are available as an on/off version, with sensor or with emergency inverter (only in the 335 mm). The version with emergency inverter can be expanded with a sensor; the other way around is not possible. Did you buy an on/off version but still want to add a sensor? Then simply order it afterwards and place it in the model. The battery for the version with emergency inverter is available separately; do not forget to order it.

View more information

Specifications

Brand

Interlight

Product type

Ceiling light

Suitable for wall mounting

Yes

GTIN

08720195278870

Suitable for ceiling mounting

Yes

Suitable for pendulum suspension

No

Suitable for surface mounting

Yes

Suitable for flush mounting

No

Suitable for light line configuration

No

With mounting material

Yes

Suitable for clamp mounting

No

Suitable for monitor workplace according to EN 12464-1

No

With light source

Yes

Lamp type

LED interchangeable

Suitable for number of light sources

1

Lampholder

Other

Housing material

Plastic

Surface protection housing

Other

Housing color

White

Material cover

Plastic opal

Grid version

No

Nom. voltage

220 – 240 V

Voltage type

AC/DC

Ballast

LED control current-controlled

Driver included

Yes

Interchangeable ballasts

Yes

Dimmable

No

Light distributor

Diffuser lens/optics/panel

Light distribution

Symmetrical

Beam angle

>80° – Extremely wide beam

Color consistency (McAdam ellipse)

SDCM5

Light outlet

Direct

Energy efficiency class of the light source according to EU regulations 2019/2015

F

Nom. life L70/B50 at 25 °C

450000 h

Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq)

97 %

Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq)

96 %

Lumen maintenance at average lifetime of 75,000 hours at 25 °C environment (tq)

94 %

Degree of protection front (IP)

IP55

Degree of protection (IP)

IP54

Degree of protection (NEMA).

1

Impact resistance

IK10

Protection class according to IEC 61140

II

Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24

No

Emergency power supply integrated

No

Nom. ambient temperature according to IEC62722-2-1

-20 – 50 °C

Suitable for emergency lighting

No

With motion sensor

Yes

Motion sensor/presence detector technology

High-frequency

With light sensor

Yes

Cover fixture with thermal insulation material possible

No

With air slots

No

Glow wire test according to IEC 60695-2-11

650 °C – 30 s

Light color according to EN 12464-1

Neutral white 3300 – 5300 K

Suitable for lamp power

5 – 10 W

Specific luminous flux luminaire

100 lm/W

Max system power

10 W

Effective luminous flux according to IEC 62722-2-1

500 – 1000 lm

Light color

White

Color temperature

3000 – 4000 K

Flickering value Pst LM

0.04

Color rendering index

80-89

Power factor

0.96

Height/depth

63 mm

Outer diameter

267 mm

Type of wiring

End

Number of poles

2

Connection method

Plug clamp

Connectable conductor cross section

1.5 – 2.5 mm²

Light color adjustable

Stands

Luminous flux adjustable

Stands

Beam angle adjustable

No
