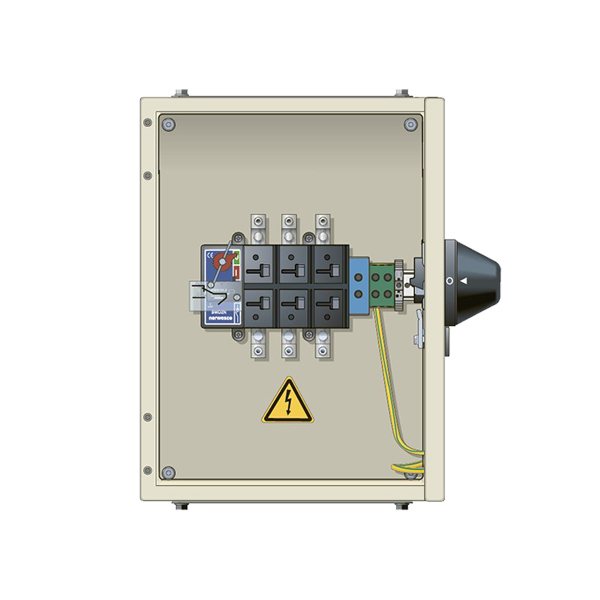

ESWM4 isolating switch 3p+hc. 80A/415V FL21 gray IP65
987,80
Out of stock (back order possible)
Log in to see exact stock
Specifications
| Brand | Norwesco |
|---|---|
| Product type | ESWM4 3p 80 amp circuit breaker |
| Design as a main switch | Yes |
| GTIN | 07394438191014 |
| Version as a working switch | Yes |
| Design as a safety switch | Yes |
| Version as an emergency stop device | No |
| Max. rated operating voltage Ue at AC | 690 V |
| Nom. continuous current Iu | 80 A |
| Rated power, AC-23, 400 V | 80 kW |
| Conditional rated short-circuit current Iq | 50 kA |
| Number of poles | 3 |
| Number of auxiliary contacts as make contact | 1 |
| Motor drive optional | No |
| Motor drive integrated | No |
| Shutdown coil optional | No |
| Device construction form | Complete device built into housing |
| Suitable for ground mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centrally | Yes |
| Suitable for distributor installation | Yes |
| Suitable for intermediate construction | Yes |
| Implementation of the control element | Door clutch rotary actuator |
| Lockable | Yes |
| Main circuit connection method | Screw connection |
| Degree of protection front (IP) | IP65 |
