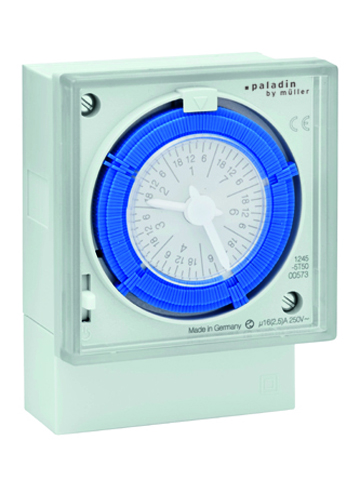

Mono QW time switch 16A 230VAC 50/60Hz 72mm IP20
156,20
In stock
Log in to see exact stock
Specifications
| Brand | Paladin |
|---|---|
| Product type | Mono 72x72mm AC230 |
| Mounting method | Front mounting 72×72 |
| GTIN | 04011732001421 |
| Number of channels | 1 |
| Supply voltage | 230 V |
| Power supply voltage type | AC |
| Frequency supply voltage | 50 – 60 Hz |
| Autonomy in hours | 100 |
| Corridor accuracy per day | 1.5 s |
| 60-minute program | No |
| 24-hour program | Yes |
| Weekly Program | Yes |
| Annual Program | No |
| Net sync | No |
| Quartz-controlled | No |
| Shortest switching time channel 1 | 120 min |
| Layout program disk 1 | 120 min |
| Automatic summer/winter time changeover | No |
| Manual | Yes |
| Preset switching | No |
| Nom. switching current at 250V AC | 16 A |
| Potential-free switching contact | Yes |
| Degree of protection (IP) | IP20 |
| Width | 72 mm |
| Height | 94.5 mm |
| Depth | 48.4 mm |
