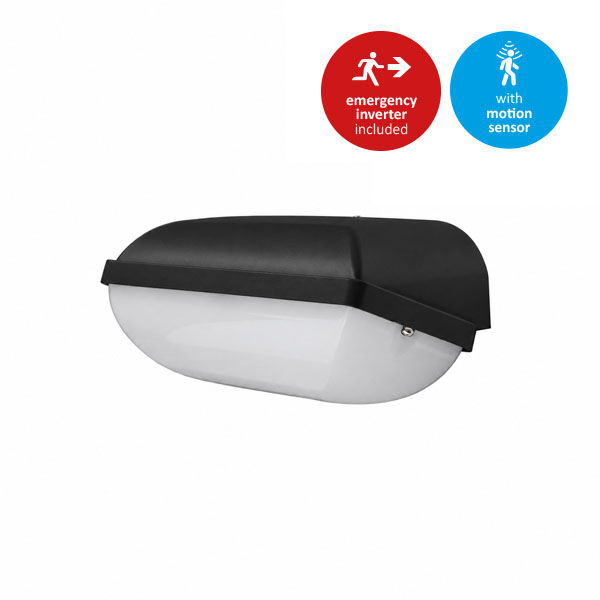

Next Entry LED 5.5/7/8.5/10W 3,000/3,500/4,000K 270x140x118mm black with emergency module and sensor

Interlight’s Next Entry fixtures combine robustness with energy efficiency and are ideal for use in porches, galleries, stairwells and entrances. Their versatility makes them suitable for both commercial and industrial environments. The flicker-free driver also ensures a pleasant and comfortable lighting experience.

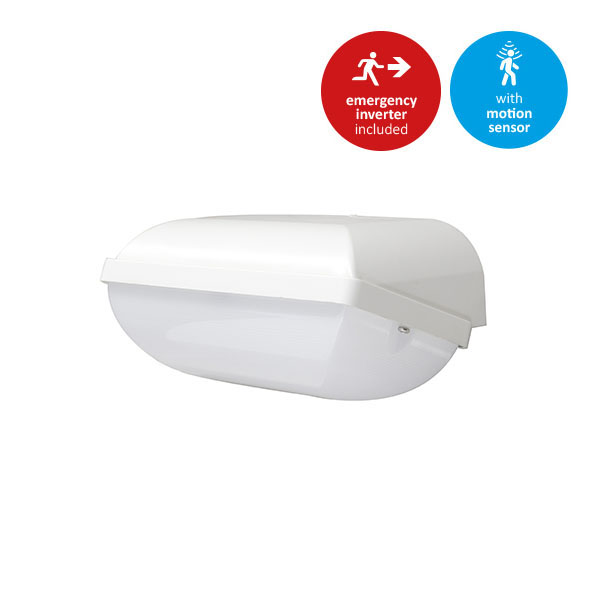

The Next Entry Type 3 is an oval wall or ceiling light (bulkhead) with a robust and functional design. The fixture has a rounded, oval shape with soft corners, giving it a timeless and neutral look. The housing consists of a white base with the light source located beneath it. The prismatic cover reduces glare and ensures an even distribution of light. Thanks to its shielding cover and diffuse light distribution, the fixture is both practical and pleasant to use.

The shade is attached with two Torx screws, which means the fixture cannot be opened without tools. For added convenience, a matching Torx wrench is included with each fixture.

For optimum flexibility, the fixtures feature adjustable wattage and light color. This makes it easy to tailor lighting to specific needs and applications. The available light colors are 3,000K, 3,500K and 4,000K.

With its wide applicability, the Next Entry series is an excellent choice for various lighting solutions. Interlight hereby guarantees quality and innovation.

By default, the sensor is set as follows:
Sensitivity: 100%
Burn Time: 5S
Standby Period: 0S
Daylight Sensor: Disabled
Standby Dimming: 20%

On the sensor, the following options can be set:
Sensitivity: 100%, 75%, 50%, 25%
Burn time: 5s, 90s, 3min, 10min
Standby period: 0s, 30s, 3min, infinity
Daylight sensor: 5Lux, 15Lux, 50Lux, disabled

The sensor can also be used as a twilight switch in standby mode. This feature works only when the daylight sensor is set to a specific lux value. As soon as the measured light intensity falls below the set lux value, the fixture automatically switches to standby mode. When motion is subsequently detected, the fixture switches to 100% light output. After the set runtime has elapsed, the fixture automatically dims back to standby mode. It is not possible to set the runtime at 100% light output to an indefinite duration.

The dim level in standby mode cannot be changed, it is 20% by default.

The fixture is additionally equipped with an emergency inverter and the corresponding battery is included as standard. The automatic self-test technology performs automatic function and duration tests, the results are displayed via a two-color LED indicator. The battery provides at least 3 hours of illumination.

Note! Only thing left to do during installation is to connect the battery.
