Next Multi led downlight 18/25W Ø300mm 3,000/4,000/6,000K IP44
66,75
Description

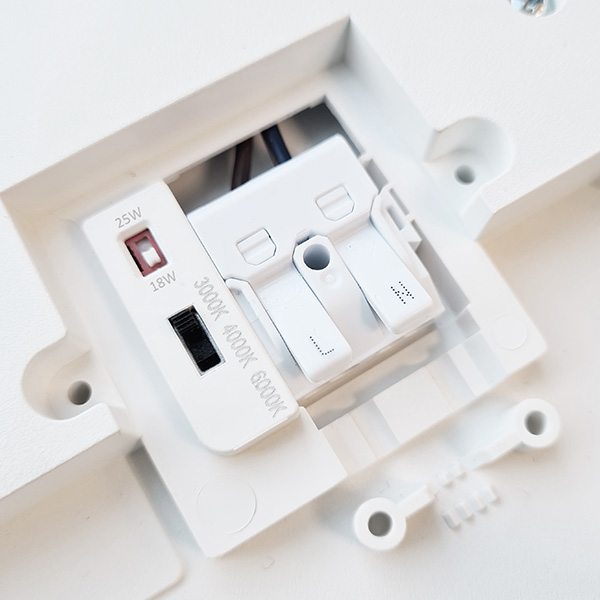

Thanks to the inventive mounting system, you can use the downlight as a recessed downlight and as a surface-mounted ceiling light. When you choose the recessed option, you can place the springs on the frame for various installation sizes. With the slider on the back, you can switch between three light colors: warm white, neutral white and cool white. In addition, you can also switch between two wattages.
Look for settings and options in the manual.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Downlight |
| Suitable for surface mounting | Yes |
| GTIN | 08719214378776 |
| Suitable for flush mounting | Yes |
| Suitable for wall mounting | Yes |
| Suitable for wall mounting | Yes |
| Suitable for pendulum suspension | No |
| Suitable for ceiling mounting | Yes |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| Nom. voltage | 230 V |
| With light sensor | No |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Plastic |
| Surface protection | Plasticized |
| Housing color | White |
| Material cover | Plastic opal |
| Surface brushed | No |
| Voltage type | AC |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Dimmable | No |
| Interchangeable ballasts | No |
| Not dimmable | Yes |
| Reflector | Other |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Light outlet | Direct |
| Energy efficiency class | A+ |
| Energy efficiency class of the built-in lamp | A+ |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | F |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 87 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 81 % |
| Lumen maintenance at average life of 100,000 hours at 25 °C environment (tq) | 66 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average life of 100,000 hours at 25 °C environment (tq) | 25 % |
| Degree of protection (IP) | IP44 |
| Degree of protection front (IP) | IP44 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 18 – 25 W |
| Max system power | 25 W |
| Luminous flux | 1710 – 2375 lm |
| Effective luminous flux according to IEC 62722-2-1 | 2375 lm |
| Specific luminous flux lamp | 95 lm/W |
| Light color | White |
| Color temperature | 3000 – 6000 K |
| Light color adjustable | Stands |
| Color rendering index | 80-89 |
| Effective luminous flux according to IEC 62722-2-1 | 1710 – 2375 lm |
| Luminous flux adjustable | Stands |
| Power factor | 0.9 |
| Beam angle adjustable | No |
| Installation width | 270 mm |
| Length | 300 mm |
| Width | 300 mm |
| Height/depth | 25 mm |
| Outer diameter | 300 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Emergency power supply integrated | No |
| Connection method | Plug clamp |
| Specific luminous flux luminaire | 95 lm/W |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Color consistency (McAdam ellipse) | SDCM5 |
| UGR | 22 |
