Orion led track 29W 85° 3,000K black CRI>80
Housing color: Black
206,10
In stock
Log in to see exact stock
Description
The Orion Tracks can be installed in all common 3-phase track systems. You no longer need separate general lighting; all lighting can be integrated into the track. In addition to general lighting, there is also a choice of wallwash variants: these fixtures shine to the left, right or both sides. (94cm long)
Specifications
| Brand | Interlight |
|---|---|
| Product type | Track light |
| Suitable for surface mounting | No |
| GTIN | 08719214375560 |
| Suitable for flush mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| Suitable for ceiling mounting | No |
| Suitable for truss mounting | No |
| Suitable for power rail mounting | Yes |
| Suitable for pedestal/floor mounting | No |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| With light sensor | No |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Plastic |
| Surface protection | Plasticized |
| Housing color | Black |
| Material cover | Plastic transparent |
| Surface brushed | No |
| Voltage type | AC |
| Nom. voltage | 220 – 240 V |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Not dimmable | Yes |
| Reflector | High Gloss |
| Light distributor | Reflector |

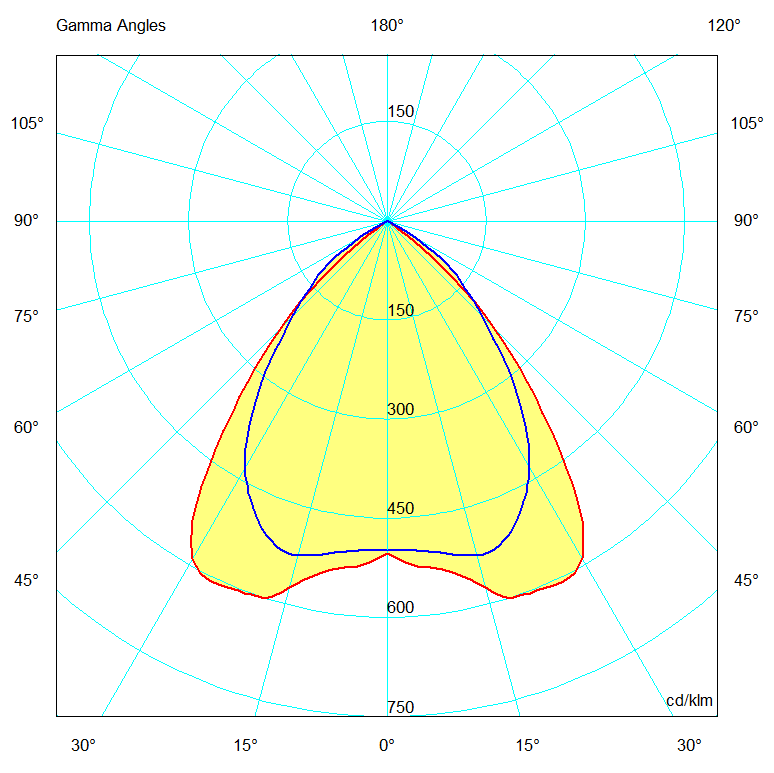

| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Light outlet | Direct/indirect |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nom. life L70/B50 at 25 °C | 50000 h |
| Nom. life L90/B50 at 25 °C | 20000 h |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK07 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -20 – 40 °C |
| Suitable for lamp power | 29 W |
| Max system power | 29 W |
| Luminous flux | 3144 lm |
| Effective luminous flux according to IEC 62722-2-1 | 3144 lm |
| Specific luminous flux lamp | 108 lm/W |
| Light color | White |
| Color temperature | 3000 K |
| Brightness | 1921 cd |
| Color rendering index | 80-89 |
| Power factor | 0.9 |
| Length | 928 mm |
| Width | 48 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Power rail adapter |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
