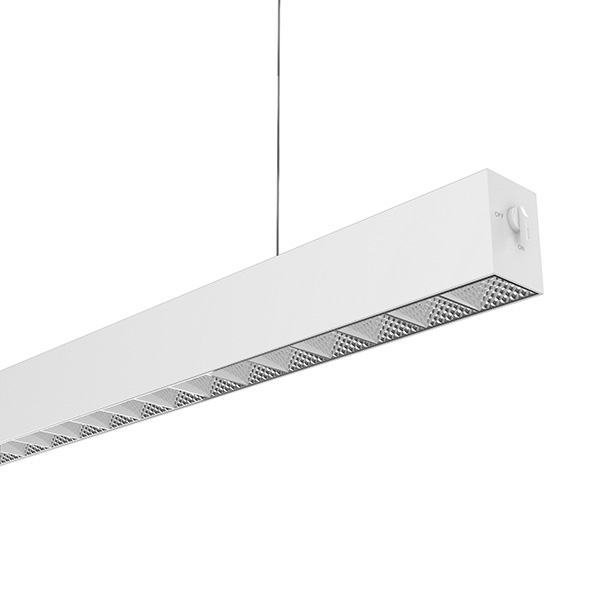

Orion Linear led 29W 85° 3,000K up/down white dimmable incl. driver
298,30
Description
This Orion fixture has 30% uplight and 70% downlight. This gives a nice spatial effect. Thanks to the Orion optics, the fixture is non-glare. The fixtures can be used individually, for example as workplace lighting above a desk. Dimmable via the button on the side of the fixture.
To pendant one individual fixture, 1x pendant kit with power cable is required (IL-LOPKIT1B or IL-LOPKIT1W). The dimmable Orion Linear is not linkable.
The Orion Linear is ENEC certified.
The color is RAL 9016.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Linear |
| Suitable for surface mounting | Yes |
| GTIN | 08719214378820 |
| Suitable for wall mounting | Yes |
| Suitable for pendulum suspension | Yes |
| Suitable for flush mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | No |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With presence detector | No |
| With motion sensor | No |
| With light sensor | No |
| With light source | Yes |
| Lamp type | LED not interchangeable |
| Suitable for number of light sources | 1 |
| Lampholder | Other |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | White |
| Material cover | Other |
| Voltage type | AC |
| Surface brushed | No |
| Nom. voltage | 220 – 240 V |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Dimmable | Yes |
| Interchangeable ballasts | Yes |
| Dimmable 1-10 V | Yes |
| Reflector | High Gloss |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Light outlet | Direct |
| Energy efficiency class | A+ |
| Energy efficiency class of the built-in lamp | A+ |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | E |
| Totale harmonische vervorming (THD) | 15 |
| Part of a holder according to 2019/2020/EU | No |
| Nom. life L70/B50 at 25 °C | 140000 h |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 92 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 88 % |
| Lumen maintenance at average life of 100,000 hours at 25 °C environment (tq) | 83 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 5 % |
| Nom. life L90/B50 at 25 °C | 50000 h |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average life of 100,000 hours at 25 °C environment (tq) | 15 % |
| Degree of protection (IP) | IP20 |
| Protection degree back (IP). | IP20 |
| Degree of protection (NEMA). | 1 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 29 W |
| Max system power | 29 W |
| Emergency power supply system | No |
| Luminous flux | 3100 lm |
| Effective luminous flux according to IEC 62722-2-1 | 3100 lm |
| Specific luminous flux lamp | 110 lm/W |
| Light color | White |
| Color temperature | 3000 K |
| Brightness | 760 cd |
| Color rendering index | 80-89 |
| Effective luminous flux according to IEC 62722-2-1 | 3100 lm |
| Luminous flux adjustable | No |
| Specific luminous flux luminaire | 106.9 lm/W |
| Power factor | 0.95 |
| Beam angle adjustable | No |
| Length | 1167 mm |
| Width | 47 mm |
| Height/depth | 65 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connectable conductor cross section | 0.75 – 1.5 mm² |
| Connection method | Plug clamp |
| Specific luminous flux luminaire | 110 lm/W |
| Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24 | No |
| Max. number of fixtures per line protection switch B16 | 62 |
| Max. number of fixtures per line protection switch C16 | 72 |
| Photobiological safety in accordance with EN 62471 | RG0 |
| Suitable for monitor workplace according to EN 12464-1 | Yes |
| Cover fixture with thermal insulation material possible | No |
| Color consistency (McAdam ellipse) | SDCM5 |
| UGR | 19 |
