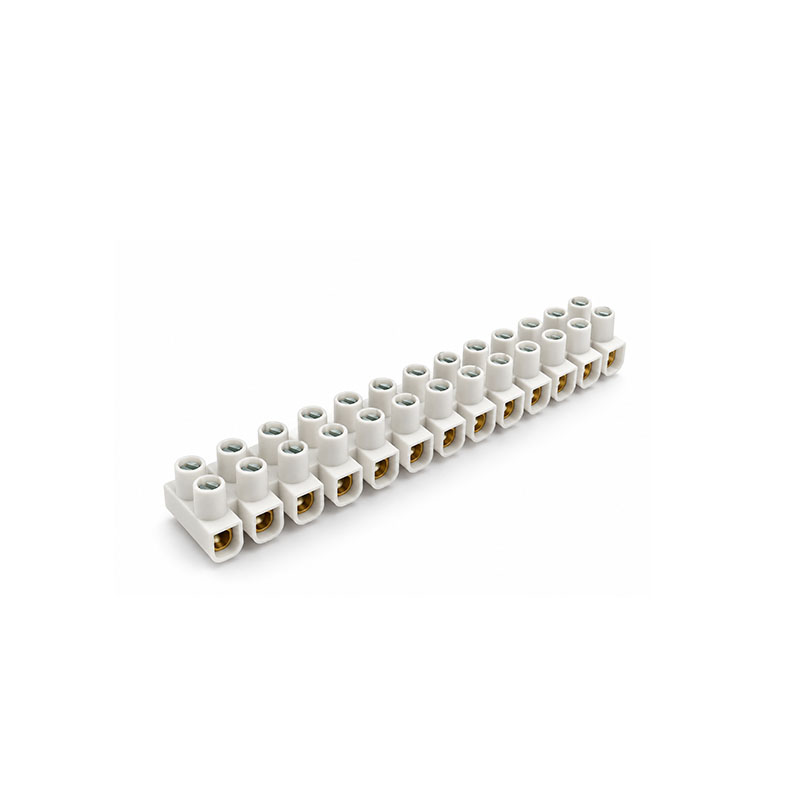

Power TKL0 Terminal Block 12-pin/1.5–4.0 mm² White
10,40
Out of stock (back order possible)
Log in to see exact stock
Description
Crown terminal block for making electrical connections with copper conductors. Suitable for both solid and flexible cable. The terminal strip has 12 terminals and can easily be snapped off to the desired length. Price and minimum order quantity are based on 10 pieces.
Specifications
| Brand | Power |
|---|---|
| Product type | Terminal |
| Drill hole spacing centric | 8.1 mm |
| GTIN | 08429784249412 |
| Connectable conductor cross-section fine wire without conductor end sleeve | 1.5 – 4 mm² |
| Connectable conductor cross-section single wire | 1.5 – 4 mm² |
| Nom. (measuring) current In | 32 A |
| Nom. (measuring) voltage | 450 V |
| Electrical connection design 1 | Screw connection |
| Electrical connection design 2 | Screw connection |
| Number of poles | 12 |
| Number of clamping positions per pole | 2 |
| Mounting method | Direct mounting |
| Operating temperature | -5 – 80 °C |
| Width | 16.6 mm |
| Height | 13 mm |
| Depth | 94.9 mm |
| Sealing plate required | No |
| Color | White |
