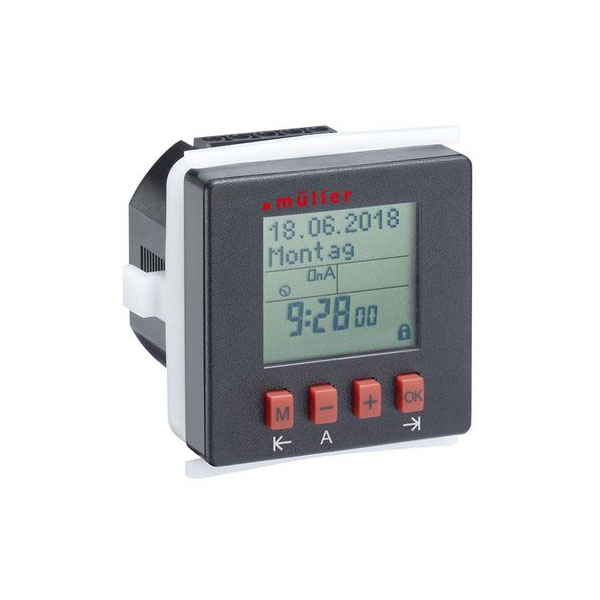

Terminal Di1 W46 8A 230V 50/60Hz 48mm black IP20
114,40
Out of stock (back order possible)
Log in to see exact stock
Specifications
| Brand | Hugo muller |
|---|---|
| Product type | WDi1 AC230 (46) Week Inb. |
| Number of channels | 1 |
| GTIN | 04022709218124 |
| Mounting method | Other |
| Power supply voltage type | AC |
| Supply voltage | 230 V |
| Frequency supply voltage | 50 – 60 Hz |
| Autonomy in years | 4 |
| Corridor accuracy per day | 0.5 s |
| Text guidance in the display | Yes |
| 60-minute program | Yes |
| 24-hour program | Yes |
| Weekly Program | Yes |
| Annual Program | No |
| Vacation Program | Yes |
| Impulse program | Yes |
| Cycle Program | No |
| Astro Program | No |
| Coincidence Program | Yes |
| Operating hour meter | Yes |
| Net sync | No |
| Quartz-controlled | Yes |
| Radio-controlled | No |
| Shortest switching time channel 1 | 1 min |
| Number of memory locations | 46 |
| Automatic summer/winter time changeover | Yes |
| Manual | Yes |
| External pressure contact input | No |
| Preset switching | No |
| Nom. switching current at 250V AC | 8 A |
| Potential-free switching contact | No |
| Degree of protection (IP) | IP20 |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 30.5 mm |
