Thinq Mira wireless all-in-one ambient and presence sensor
630,00
Description
The Interlight Mira is an advanced wireless sensor for smart and energy-efficient buildings. Combining presence detection, thermal people counting and climate monitoring in one compact ceiling sensor, Mira provides real-time insights for optimal control of lighting, HVAC systems and space utilization.
The sensor detects both motion and people sitting still thanks to the combination of PIR detection and thermal sensing. Unlike camera systems, this technology is fully AVG/GDPR-proof, ensuring privacy.
In addition, Mira continuously monitors key environmental factors such as CO₂, temperature, humidity, air pressure, air quality (TVOC), light intensity and noise levels. This data helps building managers improve comfort, save energy and utilize workplaces more efficiently.
With Wirepas mesh connectivity and integrated DALI Rx/Tx control, Mira integrates seamlessly into smart building and lighting systems for automatic and demand-driven lighting control.
Key features
- Wireless all-in-one smart building sensor
- PIR motion detection and thermal people counting
- GDPR/AVG-proof presence detection without a camera
- Monitoring of CO₂, humidity, temperature, atmospheric pressure, TVOC and air quality
- Ambient light and MEMS sound detection
- Smart lighting integration via DALI Rx/Tx
- Reliable and scalable Wirepas mesh connectivity
- Real-time occupancy and space utilization analysis
- Suitable for HVAC optimization and energy management
- Compact ceiling mounted design
Specifications
| Brand | Interlight |
|---|---|
| Product type | Sensor |
| Model | Other |
| GTIN | 08720874246756 |
| Transducer Type | Passive infrared/ultrasonic (dual) |
| Motion sensor/presence detector technology | Passive infrared/ultrasonic (dual) |
| With DALI interface | Yes |
| Constant light control | Yes |
| HVAC control | Yes |
| Forced entry | No |
| Forced shutdown | No |
| Free animal zone | No |
| Undercut protection | Yes |
| Achtergrondcontrole | Ja |
| Linkable to network | Yes |
| Optimal mounting height | 2.5 m |
| Staircase controller | No |
| Override switch | Yes |
| Max. range sideways | 6 m |
| Max attendance range | 24 m² |
| Max. range frontal | 4 m |
| Diameter range on floor | 6 m |
| Suitable for wireless | Yes |
| Remote operation | Yes |
| With remote control | Yes |
| Call sensitivity adjustable | Yes |
| Address brightness adjustable | Yes |
| With signal unit | Yes |
| Self-learning function for address clarity | No |
| Dimming function with dimmer base element | Yes |
| Suitable for wall mounting | Yes |
| Mounting method | Other |
| Suitable for ceiling mounting | Yes |
| Ceiling flush mounting without installation box | Yes |
| Suitable for wall mounting | Yes |
| Connection method | Plug clamp |
| Material | Plastic |
| Material quality | Thermoplast |
| Halogen-free | No |
| Surface protection | Other |
| Implementation surface | Mat |
| Antibacterial treatment | No |
| Color | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK02 |
| Voltage type | AC |
| Frequency | 2.4 Hz |
| Nom. voltage | 230 V |
| Nom. voltage | 220 – 240 V |
| Min. lag time | 5 s |
| Max. lag time | 8640 min |
| Turn-off delay | 5 s |
| Turn-on delay | 20 s |

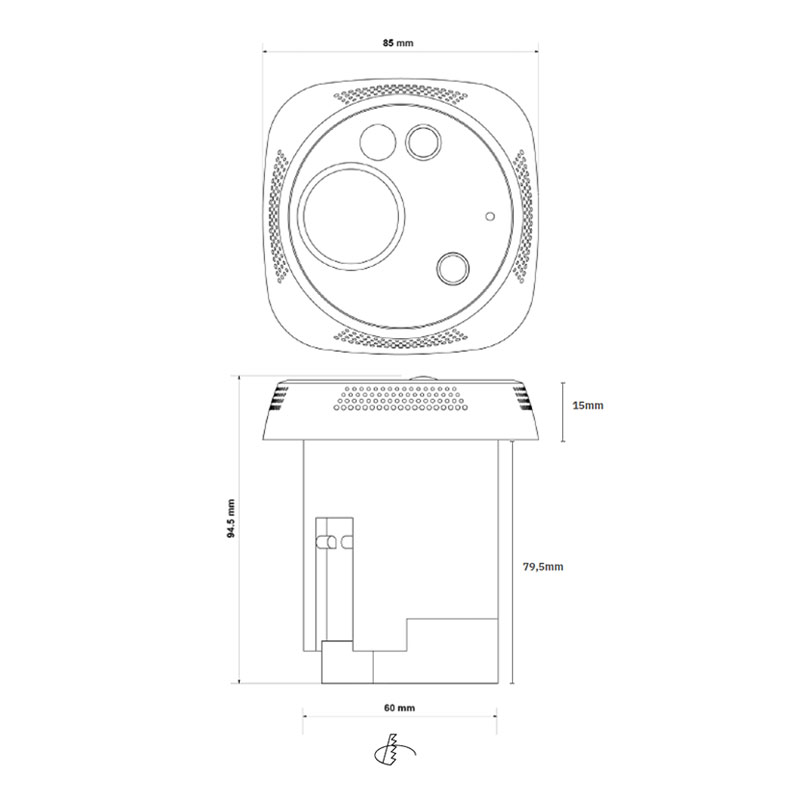

| Width | 60 mm |
| Height | 90 mm |
| Depth | 75 mm |
| Diameter | 60 mm |
| Installation width | 60 mm |
| Installation depth | 75 mm |
| Installation length | 75 mm |
| Installation diameter | 60 mm |
| Min. depth of recessed box | 75 mm |
| With connection cable | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
