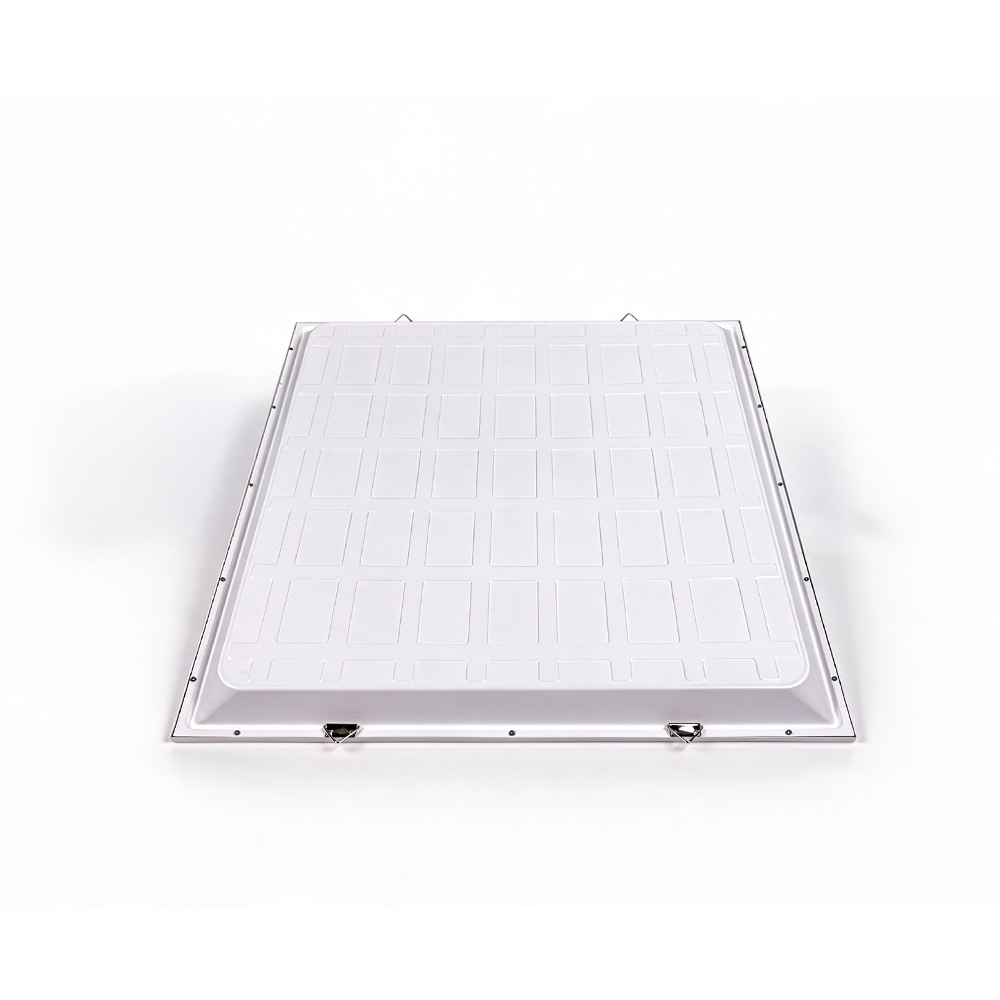

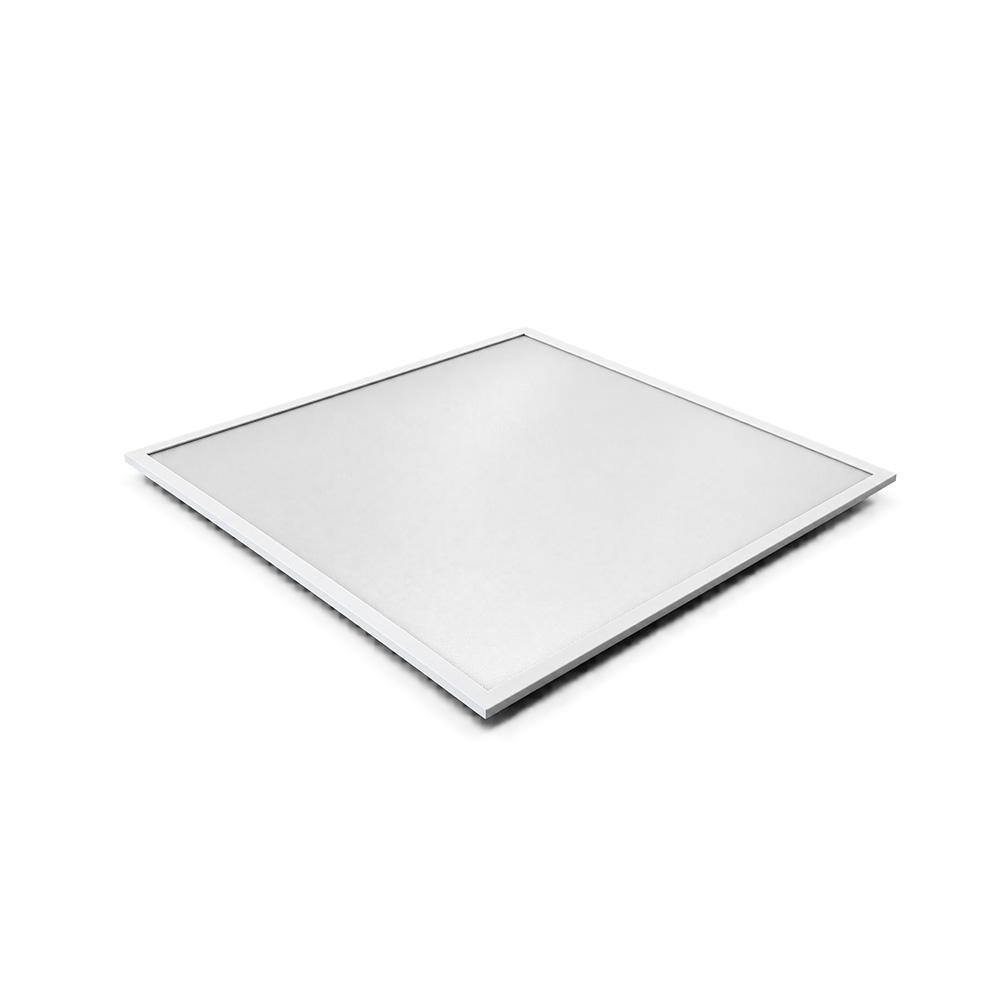

Thinq Next+ led panel 30W (595x595x33mm) 3,000/3,500/4,000K UGR<19 incl. driver and microwave sensor
268,20
Description
Discover Interlight’s updated LED panels: the Easyfit Next+ series, with a UGR value of <19. All our luminaires meet the strict NEN 12464-1 standard, which guarantees quality and performance. The Next+ variants are distinguished by their prismatic cover plate, which diffuses the light in a unique way, making glare a thing of the past. This makes the luminaires perfect for environments where intensive work is carried out, such as offices, healthcare facilities, receptions and classrooms, especially where screens are used.
What makes our fixtures extra special is that we design them entirely in-house. This allows us to maintain the highest quality standards, which is why we proudly offer a warranty of no less than 7 years. Our luminaires are not maxed out (80%), and the lenses on the LEDs are made of PMMA, a durable and colorfast plastic. We guarantee lumen maintenance of 70% after 50,000 hours. With normal use (8 burning hours per day), this means that after 7 years you only get to 20,440 hours, so no need to worry!
The Next+ Thinq LED panel offers three color temperatures: 3,000, 3,500 and 4,000 Kelvin. A convenient switch lets you effortlessly set the desired light color, the best setting for any room. The panel has a hidden Thinq (motion) sensor, allowing the panel to be set as desired. With this product, you cannot control the light color via the Thinq app.
The Thinq smart lighting system is easy to use. Using the app (available for Android and iOS), you set up the fixtures super quickly. With your Thinq system you can do everything you can do with a DALI system, and more! Thanks to the so-called routed network, the system is extremely scalable, > 10,000 sensors work seamlessly without the intervention of a gateway. Because of the sensors you save energy and you put less strain on your drivers and fixtures, we can give you a 7 year Interlight system warranty!
The panel comes standard with the IL-D53DALI2 driver, which has both CE and ENEC certification. This driver is a flicker-free driver which ensures you a good lighting solution. The panel has a very easy installation, all wiring is present on the back of the panel. Connect the wiring together and all you need is a power cord.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Panel |
| Suitable for wall mounting | No |
| GTIN | 08720195278085 |
| Suitable for pendulum suspension | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for flush mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Suitable for clamp mounting | No |
| With mounting material | No |
| Suitable for monitor workplace according to EN 12464-1 | Yes |
| Lamp type | LED not interchangeable |
| Suitable for number of light sources | 1 |
| With light source | Yes |
| Lampholder | Other |
| Housing material | Aluminum |
| Surface protection housing | Lacquered |
| Housing color | White |
| Material cover | Plastic opal |
| Voltage type | AC |
| Grid version | Other |
| Nom. voltage | 230 V |
| Nom. current | 800 – 1100 mA |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Interchangeable ballasts | Yes |
| Dimmable | Yes |
| Dimmable 0-10 V | Yes |
| Dimmable Dali-2 | Yes |
| Dimming programmable | Yes |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Color consistency (McAdam ellipse) | SDCM3 |
| Light outlet | Direct |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | E |
| Part of a holder according to 2019/2020/EU | No |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 90 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 87 % |
| Lumen maintenance at average lifetime of 75,000 hours at 25 °C environment (tq) | 80 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 20 % |
| Protection degree back (IP). | IP44 |
| Failure at average service life of 75,000 hours at 25 °C environment (tq) | 40 % |
| Degree of protection front (IP) | IP20 |
| Degree of protection (IP) | IP20 |
| Maximum number of fixtures per circuit breaker C10 (MCB) | 32 |
| Max. number of fixtures per line protection switch B16 | 52 |
| Max. number of fixtures per line protection switch C16 | 52 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Emergency power supply integrated | No |
| Emergency power supply system | No |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for emergency lighting | Yes |
| With switch | No |
| With presence detector | No |
| With motion sensor | No |
| Specific luminous flux luminaire | 90 lm/W |
| Effective luminous flux according to IEC 62722-2-1 | 4815 lm |
| With light sensor | No |
| Cover fixture with thermal insulation material possible | No |
| With air slots | No |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Suitable for lamp power | 27 – 47 W |
| Specific luminous flux luminaire | 103 – 108 lm/W |
| Max system power | 53 W |
| Effective luminous flux according to IEC 62722-2-1 | 2910 – 4815 lm |
| Light color | White |
| Color temperature | 3000 – 4000 K |
| Color rendering index | 80-89 |
| Power factor | 0.95 |
| Strobe effect value SVM | 0.01 |
| Width | 595 mm |
| Height/depth | 33 mm |
| Length | 595 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Plug clamp |
| UGR | 19 |
| Light color adjustable | Stands |
| Luminous flux adjustable | Stands |
| Beam angle adjustable | No |
