Camita led downlight 11W Ø136mm 3,000/3,500/4,000K black ex. driver
59,25
Description
The versatile New Camita downlights, where efficiency merges effortlessly with style. Their sleek, robust appearance makes them the perfect complement for a variety of environments, including offices, healthcare facilities, hospitality areas and hallways. But there is more than meets the eye. With a range of drivers to choose from, including 1-10V, Dali dimmable or Thinq smart drivers, you achieve the ultimate in customization options.
And if that’s not enough, the New Camita has integrated 3CCT technology. This means you can switch between different light colors without fuss, just the way you want it. But it’s not just about the technology; it’s about the experience. Enjoy glare-free light that is not only functional, but also creates an ambient atmosphere in any room in which you place these fixtures. The New Camita is not just a light source, it is a way to create the perfect atmosphere anytime, anywhere.
The Camita downlight comes without a driver. Choose a dimmable Easyfit driver or set the dip switches to a maximum of 250mA. If you choose a driver other than the EasyFit (IL-EDD) or a DALI2 driver, keep in mind that you will need a coupling cord (IL-S20FF).
Specifications
| Brand | Interlight |
|---|---|
| Product type | Downlight |
| Suitable for surface mounting | No |
| GTIN | 08720195277606 |
| Suitable for flush mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| With presence detector | No |
| Suitable for ceiling mounting | Yes |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | No |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| With light sensor | No |
| Nom. current | 250 mA |
| Lamp type | LED not interchangeable |
| With light source | No |
| Suitable for number of light sources | 1 |
| Lampholder | No |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | Black |
| Material cover | None (expired) |
| Surface brushed | No |
| Voltage type | AC |
| Ballast | LED control current-controlled |
| Driver included | No |
| Dimming dependent on driver | Yes |
| Dimmable | Yes |
| Dimmable phase cut | Yes |
| Interchangeable ballasts | Yes |
| Dimmable phase cut | Yes |
| Dimmable 0-10 V | Yes |
| Dimmable 1-10 V | Yes |
| Dimmable Dali-2 | Yes |
| Dimmable DALI | Yes |
| Reflector | High Gloss |
| Light distributor | Reflector |
| Light distribution | Symmetrical |
| Reflector color | Silver |
| Beam angle | 41-80° – Broadcast |
| Light outlet | Direct |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | E |
| Nom. life L70/B50 at 25 °C | 200000 h |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 94 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 91 % |
| Lumen maintenance at average life of 100,000 hours at 25 °C environment (tq) | 84 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 5 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average life of 100,000 hours at 25 °C environment (tq) | 25 % |
| Constant luminous flux control | No |
| Degree of protection (IP) | IP20 |
| Protection degree back (IP). | IP20 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 11 W |
| Max system power | 11 W |
| Emergency power supply system | No |
| Luminous flux | 1020 – 1060 lm |
| Effective luminous flux according to IEC 62722-2-1 | 1060 lm |
| Specific luminous flux lamp | 250 lm/W |
| Light color | White |
| Color temperature | 3000 – 4000 K |
| Color rendering index | 90-100 |
| Effective luminous flux according to IEC 62722-2-1 | 1020 – 1045 lm |
| Luminous flux adjustable | No |
| Specific luminous flux luminaire | 92.7 – 95 lm/W |
| Power factor | 0.9 |

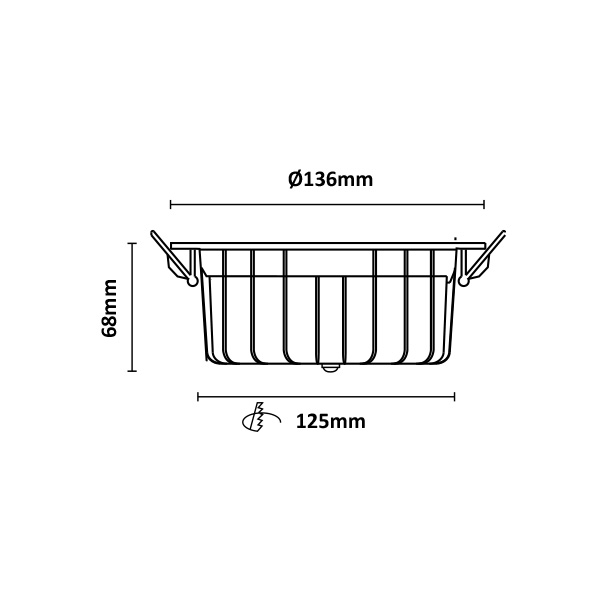

| Installation diameter | 125 mm |
| Beam angle adjustable | No |
| Height/depth | 68 mm |
| Outer diameter | 136 mm |
| Installation diameter | 125 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Plug clamp |
| Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24 | No |
| Suitable for monitor workplace according to EN 12464-1 | Yes |
| Cover fixture with thermal insulation material possible | No |
| UGR | 19 |
