Creator Pro X led downlight 36W Ø221mm 3,000/4,000/5,700K ex. driver
132,00
Description
The Creator Pro X recessed fixtures are available in seven recessed sizes. The fixture comes standard with silver reflector. Separate reflectors are available in black, gold and matte silver.
The reflector is attached to the fixture with magnets, so if desired, it is easy to change.
With the slider at the back of the LED module, the light color is adjustable (3000/4000/5700K). The fixture is 1-10V dimmable in combination with the IL-X2 driver.
CAUTION: Set the selected driver to max 1000mA.
Specifications
| Brand | Interlight |
|---|---|
| Product type | Downlight |
| Suitable for surface mounting | No |
| GTIN | 08719214377205 |
| Suitable for flush mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| Suitable for ceiling mounting | Yes |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | No |
| Adjustability | Not adjustable |
| With motion sensor | No |
| With light sensor | No |
| Lamp type | LED not interchangeable |
| Nom. voltage | 230 V |
| With light source | Yes |
| Nom. current | 1000 mA |
| Suitable for number of light sources | 1 |
| Lampholder | No |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | White |
| Material cover | Plastic transparent |
| Surface brushed | No |
| Voltage type | AC |
| Ballast | LED control current-controlled |
| Driver included | No |
| Dimmable | Yes |
| Interchangeable ballasts | Yes |
| Dimmable 0-10 V | Yes |
| Dimmable 1-10 V | Yes |
| Dimmable Dali-2 | Yes |
| Reflector | High Gloss |
| Light distributor | Diffuser lens/optics/panel |
| Light distribution | Symmetrical |
| Beam angle | >80° – Extremely wide beam |
| Light outlet | Direct |
| Energy efficiency class | A+ |
| Energy efficiency class of the built-in lamp | A+ |
| Nom. life L70/B50 at 25 °C | 162000 h |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 100 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 90 % |
| Lumen maintenance at average life of 100,000 hours at 25 °C environment (tq) | 80 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average life of 100,000 hours at 25 °C environment (tq) | 50 % |
| Degree of protection (IP) | IP44 |
| Protection degree back (IP). | IP20 |
| Degree of protection front (IP) | IP44 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Suitable for lamp power | 36 W |
| Max system power | 36 W |
| Effective luminous flux according to IEC 62722-2-1 | 4000 lm |
| Light color | White |
| Color temperature | 3000 – 5700 K |
| Brightness | 2400 cd |
| Color rendering index | 80-89 |
| Power factor | 0.9 |

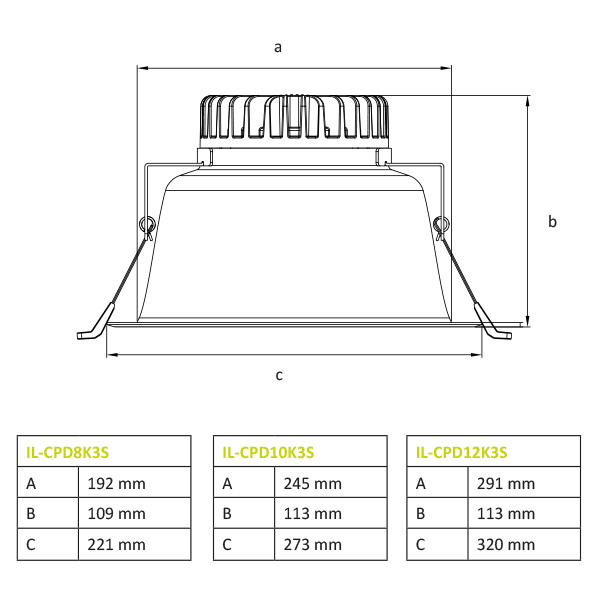

| Installation diameter | 192 mm |
| Length | 221 mm |
| Width | 221 mm |
| Height/depth | 109 mm |
| Outer diameter | 221 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Plug clamp |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Cover fixture with thermal insulation material possible | No |
| Color consistency (McAdam ellipse) | SDCM3 |
| UGR | 19 |
