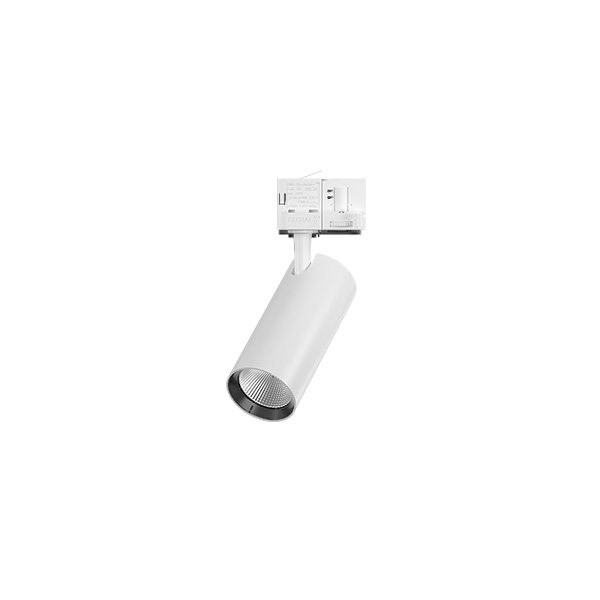

Next Multi led spotlight 10W 45° 3,000/4,000/5,700K dimmable white
51,20
Description
The Next Multi track spotlight is sleek and modern in design. Suitable for 3-phase track systems. The track spotlight is available in black and white. The switches on the back allow switching between three light colors: 3,000, 4,000 and 5,700K. The track spotlight with Global adapter is easy to install, rotates 350° and swivels up to 90°. Built-in non-flick driver, 45° beam angle and LED SDCM<3 to ensure color consistency. The reflector is made of pure aluminum. In this, the reflective coating provides a uniform and comfortable light beam. The 10W tracks are triac dimmable.
The trackspot has a wide range of applications, including retail, hotels and restaurants, among others

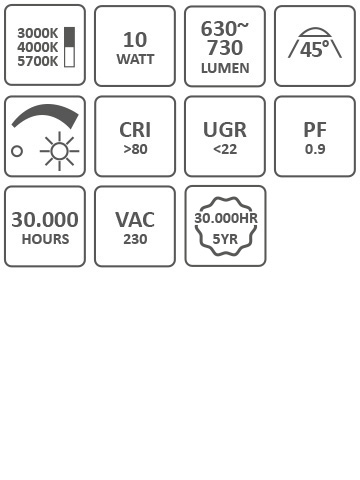

Specifications
| Brand | Interlight |
|---|---|
| Product type | Trackspot |
| Suitable for surface mounting | No |
| GTIN | 08720195270065 |
| Suitable for flush mounting | No |
| Suitable for wall mounting | No |
| Suitable for wall mounting | No |
| Suitable for pendulum suspension | No |
| Suitable for ceiling mounting | No |
| Suitable for truss mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for power rail mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Rotatable and pivotable |
| With motion sensor | No |
| With light sensor | No |
| Lamp type | LED not interchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lampholder | No |
| Housing material | Aluminum |
| Surface protection | Lacquered |
| Housing color | White |
| Material cover | Plastic transparent |
| Surface brushed | No |
| Led nom. current at constant current | 70 mA |
| Voltage type | AC |
| Nom. voltage | 220 – 240 V |
| Nom. current | 70 mA |
| Ballast | LED control current-controlled |
| Driver included | Yes |
| Dimming dependent on driver | Yes |
| Dimmable | Yes |
| Interchangeable ballasts | No |
| Dimmable phase cut | Yes |
| Dimmable phase cut | Yes |
| Reflector | High Gloss |
| Light distributor | Reflector |
| Light distribution | Symmetrical |
| Beam angle | 41-80° – Broadcast |
| Light outlet | Direct |
| Nom. life L70/B50 at 25 °C | 30000 h |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for lamp power | 10 W |
| Max system power | 10 W |
| Luminous flux | 630 – 730 lm |
| Effective luminous flux according to IEC 62722-2-1 | 730 lm |
| Light color | White |
| Color temperature | 3000 – 5700 K |
| Light color adjustable | Stands |
| Color rendering index | 80-89 |
| Luminous flux adjustable | Stands |
| Power factor | 0.9 |

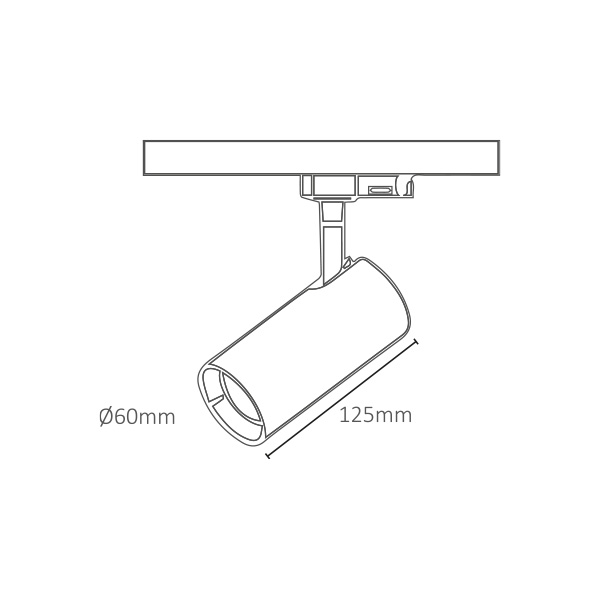

| Length | 140 mm |
| Width | 70 mm |
| Height/depth | 50 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Power rail adapter |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Suitable for monitor workplace according to EN 12464-1 | No |
| Cover fixture with thermal insulation material possible | No |
| UGR | 22 |
