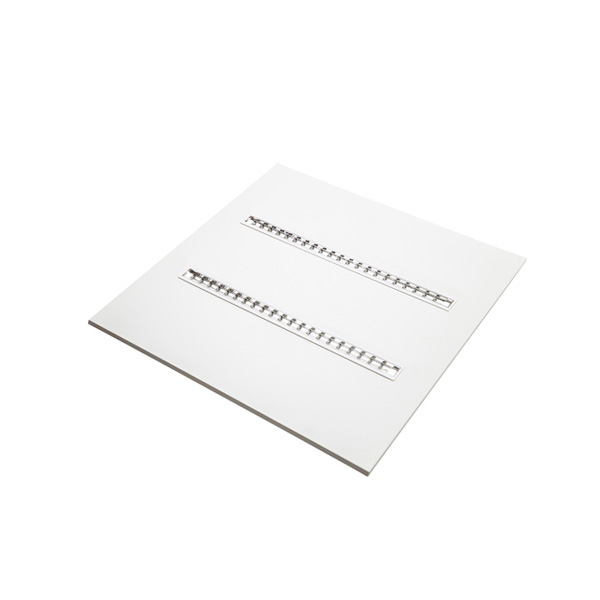

Orion panel 28W (595x595x30mm) 3,000K UGR<19 white ex. driver bulk
121,30
Out of stock (back order possible)
Log in to see exact stock
Specifications
| Brand | Interlight |
|---|---|
| Product type | Panel |
| Suitable for pendulum suspension | Yes |
| GTIN | 08720195276272 |
| Suitable for ceiling mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for flush mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for wall mounting | No |
| Suitable for clamp mounting | No |
| Suitable for monitor workplace according to EN 12464-1 | Yes |
| Suitable for light line configuration | No |
| With mounting material | No |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lamp type | LED interchangeable |
| Lampholder | Other |
| Housing material | Aluminum |
| Surface protection housing | Lacquered |
| Housing color | White |
| Voltage type | AC |
| Material cover | Other |
| Nom. voltage | 230 V |
| Grid version | No |
| Ballast | LED control current-controlled |
| Interchangeable ballasts | Yes |
| Driver included | No |
| Dimmable 0-10 V | Yes |
| Dimmable | Yes |
| Dimmable 1-10 V | Yes |
| Dimmable DALI | Yes |
| Dimmable Dali-2 | Yes |
| Dimmable phase cut | Yes |
| Dimmable phase cut | Yes |
| Dimming dependent on driver | Yes |
| Light distributor | Reflector |
| Light distribution | Symmetrical |
| Beam angle | 41-80° – Broadcast |
| Light outlet | Direct |
| Energy efficiency class of the light source according to EU regulations 2019/2015 | E |
| Part of a holder according to 2019/2020/EU | No |
| Nom. life L70/B50 at 25 °C | 140000 h |
| Rated life time L70/B10 at 25 °C | 50000 h |
| Lumen maintenance at average lifetime of 35,000 hours at 25 °C environment (tq) | 92 % |
| Lumen maintenance at average lifetime of 50,000 hours at 25 °C environment (tq) | 88 % |
| Lumen maintenance at average lifetime of 75,000 hours at 25 °C environment (tq) | 83 % |
| Failure at average service life of 35,000 hours at 25 °C environment (tq) | 5 % |
| Failure at average service life of 50,000 hours at 25 °C environment (tq) | 10 % |
| Failure at average service life of 75,000 hours at 25 °C environment (tq) | 15 % |
| Protection degree back (IP). | IP20 |
| Degree of protection front (IP) | IP20 |
| Degree of protection (IP) | IP20 |
| Impact resistance | IK02 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature "D-sign" according to EN 60598-2-24 | No |
| Emergency power supply integrated | No |
| Emergency power supply system | No |
| Nom. ambient temperature according to IEC62722-2-1 | -10 – 40 °C |
| Suitable for emergency lighting | Yes |
| With switch | No |
| With presence detector | No |
| With motion sensor | No |
| Specific luminous flux luminaire | 125 lm/W |
| Effective luminous flux according to IEC 62722-2-1 | 3500 lm |
| With light sensor | No |
| Cover fixture with thermal insulation material possible | No |
| With air slots | No |
| Glow wire test according to IEC 60695-2-11 | 650 °C – 30 s |
| Light color according to EN 12464-1 | Neutral white 3300 – 5300 K |
| Suitable for lamp power | 28 W |
| Specific luminous flux luminaire | |
| Max system power | 28 W |
| Effective luminous flux according to IEC 62722-2-1 | |
| Light color | White |
| Color temperature | 3000 K |
| Color rendering index | 80-89 |
| Power factor | 0.95 |
| Width | 595 mm |
| Height/depth | 30 mm |
| Length | 595 mm |
| Type of wiring | End |
| Number of poles | 2 |
| Connection method | Plug clamp |
| UGR | 19 |
| Light color adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
